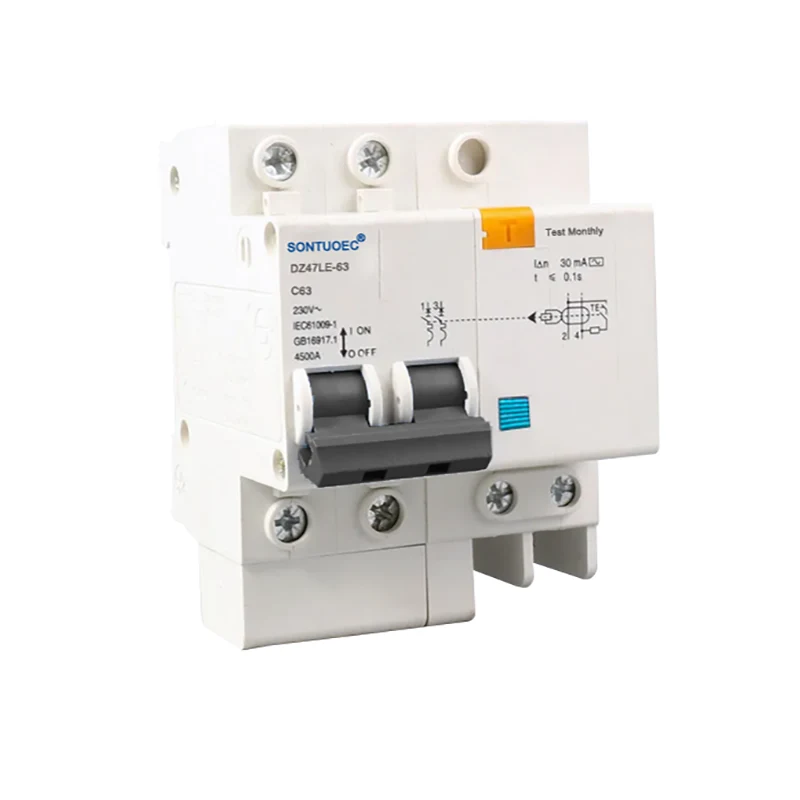

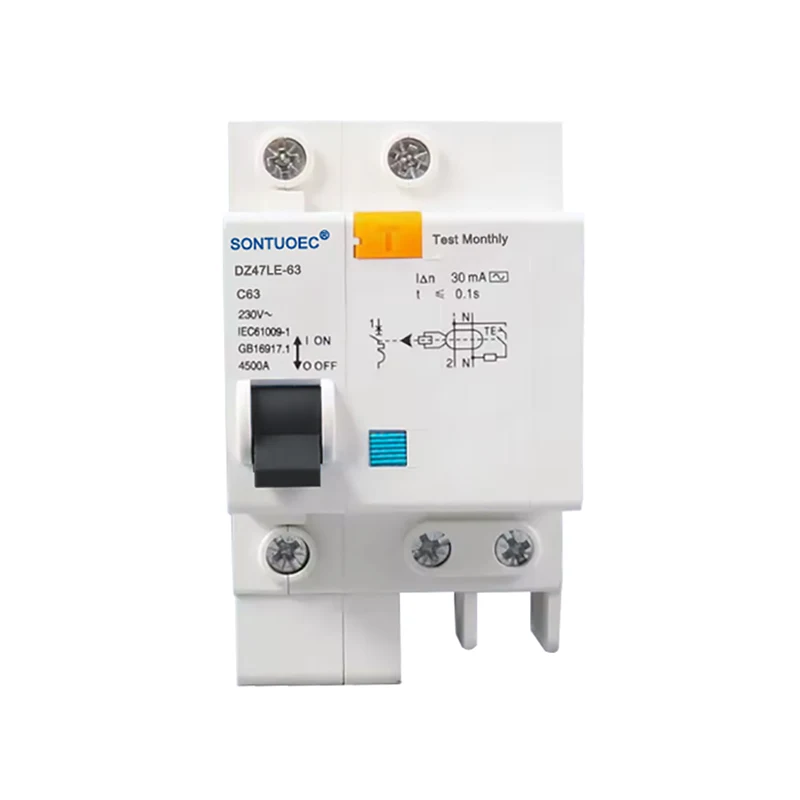

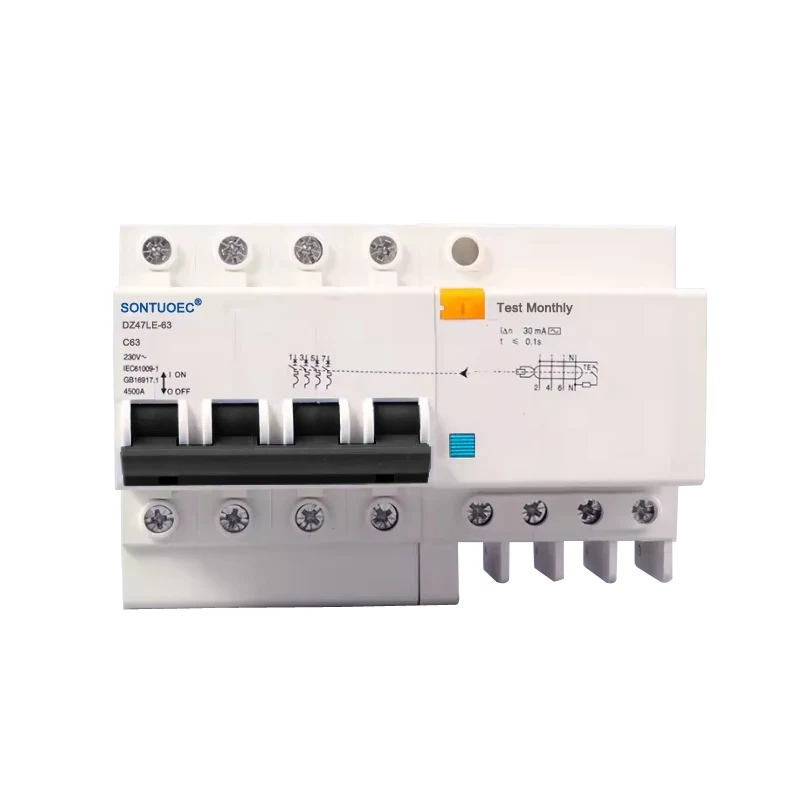

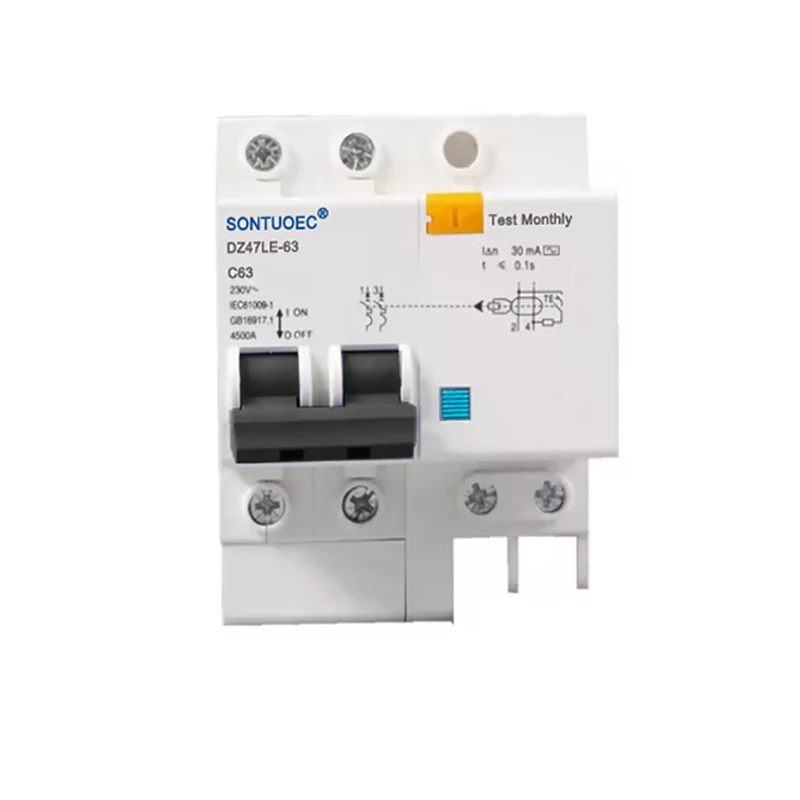

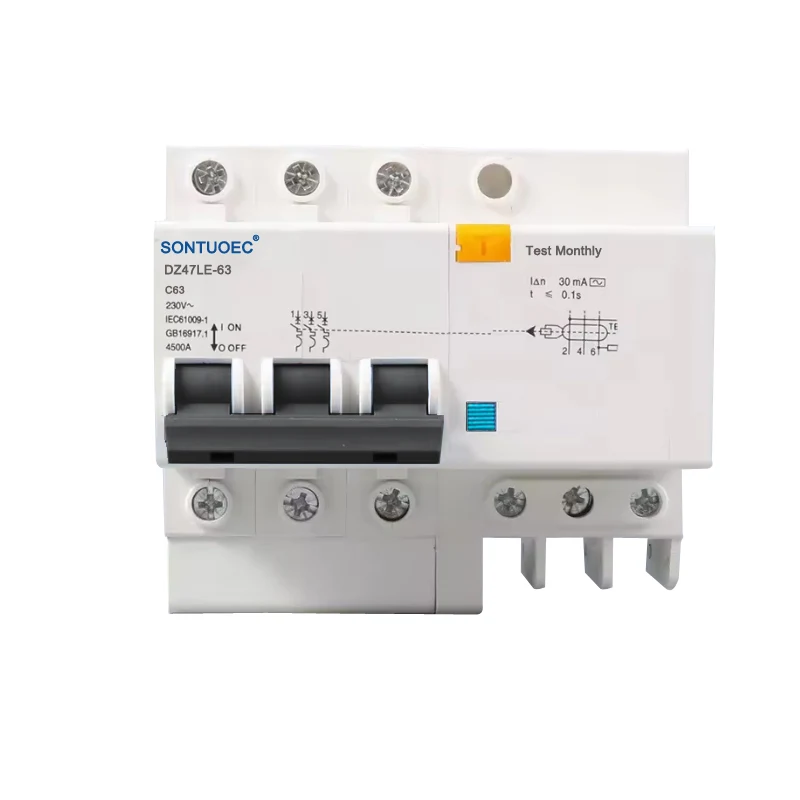

4P RCBO AC Mtundu

4P RCBO AC Type ndi 4-pole circuit breaker yomwe imaphatikiza chitetezo chamakono chotsalira ndi ntchito zotetezera mopitirira muyeso, makamaka zopangidwira mabwalo amakono (AC). Ikhoza kudzimitsa magetsi pamene mphamvu yotsalira (i.e. leakage current) ikupezeka muderali kuti iteteze moto wamagetsi ndi ngozi zadzidzidzi zamagetsi. Panthawi imodzimodziyo, ilinso ndi ntchito yotetezera yowonjezereka yomwe ingathe kuthyola magetsi pokhapokha ngati ikuchulukirachulukira kapena kufupikitsa dera kuti ateteze chitetezo cha dera ndi zipangizo.

Chitsanzo:DZ47LE-63

Tumizani Kufunsira

Mafotokozedwe Akatundu

dzina	Chotsalira Chozungulira Circuit ndi Chitetezo Chowonjezera
Mawonekedwe	overload / short circuit / chitetezo kutayikira
Pole No	1P/2L, 2P/2L, 3P/3L, 3P/4L 4P/4L
Kuphwanya Mphamvu	3kA,4.5KA,6KA
Idavoteredwa Yapano(A)	6A, 10A, 16A, 20A, 25A, 32A, 40A, 63A
Adavotera zotsalira zomwe zikugwira ntchito:	10mA, 30mA, 100mA, 300mA, 500mA
Adavoteledwa Voltage(V)	240/415 v
kukhazikitsa	din njanji mtundu
muyezo	IEC61009-1, GB16917-1
certification	CE

Mfundo ya ntchito

Mfundo yogwiritsira ntchito mtundu wa 4P RCBO AC imatengera kuchuluka kwa ma vector a mafunde komanso mfundo zamagetsi. Pamene mafunde mu dera pa moto (L) ndi ziro (N) mawaya sali ofanana mu ukulu, vekitala kuchuluka kwa mafunde mbali yaikulu ya thiransifoma dera si ziro, amene amapanga voteji anachititsa mu yachiwiri mbali koyilo. Mphamvu yamagetsiyi imawonjezedwa ku ma elekitiromagineti relay, kutulutsa mphamvu yosangalatsa yomwe imapanga mphamvu yosinthira maginito. Mphamvu yamagetsi ikafika pamtengo waposachedwa wa RCBO, mphamvu yosinthira maginitoyi ipangitsa kuti zida zomwe zili mkati mwa ma electromagnetic relay kuti zichoke pa goli, ndikukankhira makina ogwiritsira ntchito kuti agwire ndikudula dera lomwe lalakwika.

DZ47LE-63 mndandanda wamagetsi padziko lapansi kutayikira chitetezo dera wosweka ndi oyenera gawo limodzi zogona dera la AC 50Hz/60Hz, oveteredwa voteji 230V, ndipo oveteredwa panopa 6A~63A; 400V pamagawo atatu a AC 50Hz/60Hz. Itha kuteteza kuchulukira kwa mawonekedwe ozungulira komanso kuzungulira kwafupipafupi. Mankhwalawa ali ndi ubwino wa voliyumu yaying'ono, mphamvu yowonongeka kwambiri, waya wamoyo ndi mzere wa zero amadulidwa nthawi imodzi, komanso kuteteza munthu kuti asawonongeke ndi magetsi a magetsi pamtundu wa waya wamoto ndi mzere wa zero wolumikizidwa kumbuyo.

Zimagwirizana ndi muyezo IEC61009-1,GB16917.1.

Mbali:

1) .Amapereka chitetezo ku kugwedezeka kwa magetsi, kuwonongeka kwa dziko lapansi, kutuluka kwa madzi;

2) .Amapereka chitetezo ku kuchulukirachulukira, kuthamanga kwafupipafupi ndi kupitirira-voltage;

3). Voliyumu yaying'ono, mphamvu yosweka kwambiri; waya wamoyo ndi mzere wa zero amadulidwa nthawi imodzi;

4). Kukula kwakung'ono ndi kulemera kwake, kuyika kosavuta ndi waya, ntchito yapamwamba komanso yolimba

5). Perekani motsutsana ndi misoperation tripping chifukwa cha mphamvu yamagetsi nthawi yomweyo komanso mphamvu yanthawi yomweyo.

Mbali & Ubwino

Chitetezo chamitundu ingapo: Mtundu wa 4P RCBO AC umaphatikiza chitetezo chotsalira chapano komanso chitetezo chopitilira muyeso kuti chipereke chitetezo chokwanira pamabwalo ndi zida.

Kukhudzika kwakukulu: Kutetezedwa kwamphamvu kwambiri pakugwiritsa ntchito mwadzidzidzi kapena kukwera pang'onopang'ono kwa otsalira a sinusoidal AC pano kumatsimikizira kulumikizidwa.

Ntchito zosiyanasiyana: Zoyenera mabwalo a AC m'machitidwe ogawa magetsi apanyumba, mafakitale ndi malonda, makamaka pa wiring imodzi yamoto-imodzi-zero.

Zosavuta kukhazikitsa ndi kukonza: kapangidwe koyenera kamangidwe, kosavuta kukhazikitsa, komanso kosavuta kukonza ndikukonzanso.

Zochitika za Ntchito

4P RCBO AC Type imagwiritsidwa ntchito kwambiri poteteza dera la AC m'nyumba, maofesi, malo ogulitsa ndi mafakitale. Ndiwoyenera makamaka pamapulogalamu omwe amafunikira chitetezo cha mawaya onse a Moto ndi Zero, monga mabwalo owunikira, ma socket circuits ndi chitetezo cha zida monga ma mota.

4P RCBO AC Type
