6ka Yotsalira Yotsalira Yozungulira Pakalipano Pachitetezo Pakalipano RCBO

SONTUOEC ndi m'modzi mwa ogulitsa/opanga aku China omwe amagwira ntchito yopanga zida zamagetsi zazing'ono zosiyanasiyana STRO1-40 RCBO, dzina lonse ndi Residual Current Circuit Breaker with Overcurrent Protection. Ndi chipangizo chamagetsi chamagetsi chomwe chimagwirizanitsa chitetezo chochulukirapo, chitetezo chafupikitsa ndi chitetezo cha kutayikira, ndipo chimagwiritsidwa ntchito kwambiri m'makina a magetsi m'madera okhala, malonda ndi mafakitale kuti atsimikizire chitetezo chaumwini ndi ntchito yotetezeka ya zida.STRO7-40 RCBO ndi chipangizo chofunika kwambiri cha chitetezo chamagetsi chomwe chimakhala ndi katundu wochuluka, wafupipafupi komanso chitetezo cha kutayikira. Pomvetsetsa mfundo yake yogwirira ntchito, mawonekedwe, zochitika zogwiritsira ntchito, ndi kusankha ndi kukhazikitsa njira, mutha kugwiritsa ntchito bwino ndikusunga STRO7-40 RCBO kuonetsetsa kuti magetsi akuyenda bwino.

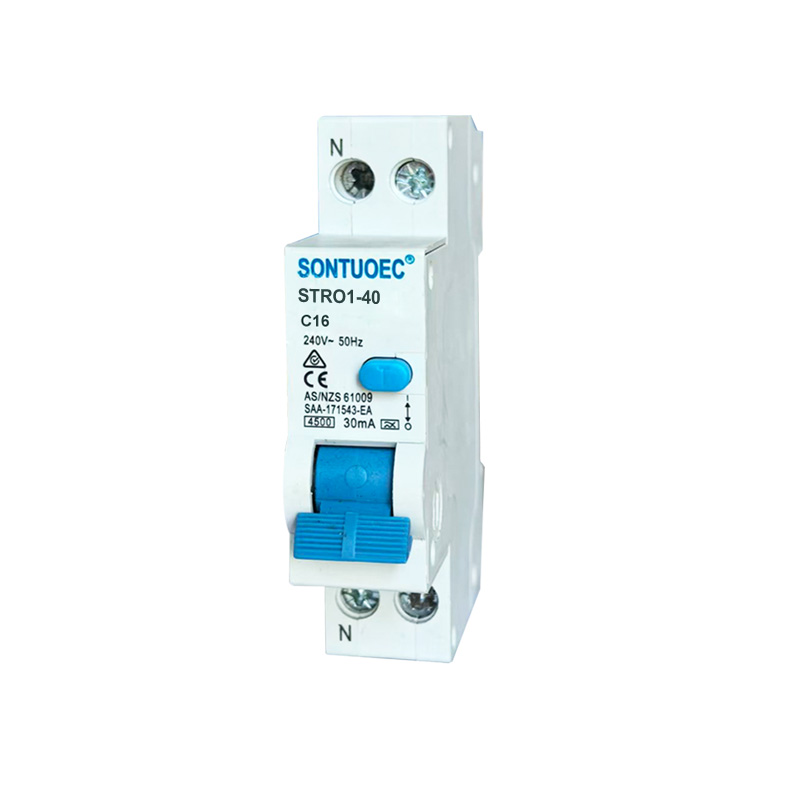

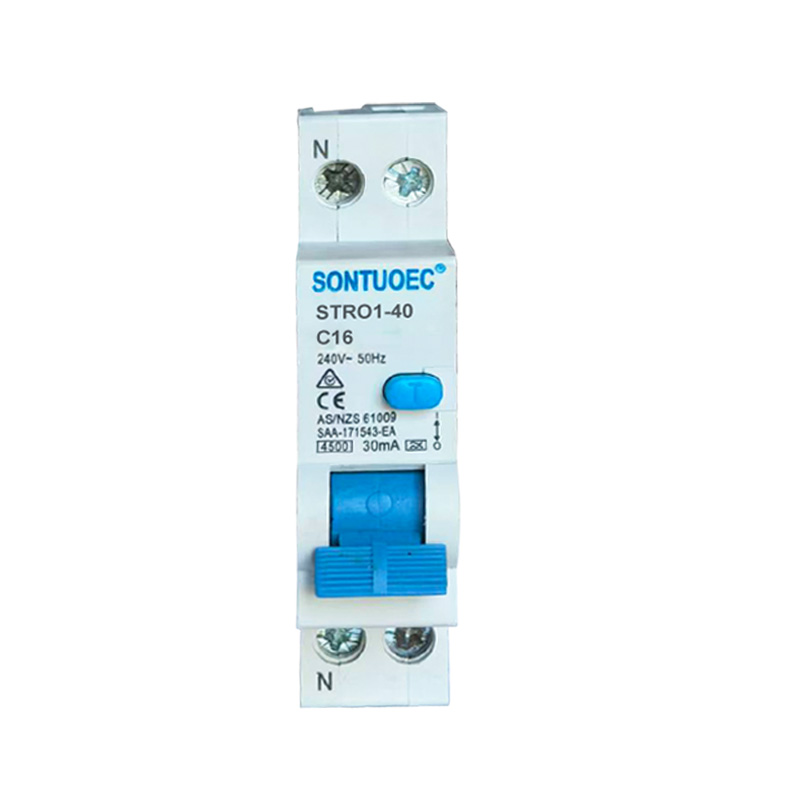

Chitsanzo:STRO1-40

Tumizani Kufunsira

Mafotokozedwe Akatundu

Zofotokozera:

Sandard			IEC/EN 61009-1
Zamagetsi	Mtundu (mawonekedwe a mafunde a dziko lapansi akutuluka)		Mtundu wamagetsi
Mawonekedwe	Adavoteledwa panopa	A	A, AC
	Mitengo	P	1P+N
	Adavotera mphamvu	V	Mtengo wa AC230
	Adavoteledwa Pano :		6,10,16,20,25,32,40A
	Idavoteredwa sensitivity I△n	A	0.01,0.03,0.1,0.3,0.5
	Insulation voltage Ui	V	250
	Adavotera kupanga zotsalira ndi	A	500
	kuswa mphamvu I△m	A	500
	Short-circuit panopa I△c	A	45,006,000
	Adavoteledwa pafupipafupi	Hz	50/60
	Digiri ya kuipitsa		2
Zimango	Moyo wamagetsi	t	4000
Mawonekedwe	Moyo wamakina	t	10000
	Digiri ya chitetezo		IP20
	Kutentha kozungulira	ºC	-25-40
	(ndi pafupifupi tsiku lililonse ≤35ºC)	ºC	-25-40
	Kutentha kosungirako	ºC	-25 ~ + 70
Kuyika	Mtundu wolumikizira terminal		Chingwe / U-mtundu wa basi / pini-mtundu wa basi
	Kukula kokwerera pamwamba/pansi kwa chingwe	mm2	25
	Kukula kokwerera pamwamba/pansi kwa chingwe	AWG	18-5
	Kukula kokwerera pamwamba/pansi kwa busbar	mm2	25
	Kukula kokwerera pamwamba/pansi kwa busbar	AWG	18-3
	Kukwera		Pa njanji ya DIN EN 60715(35mm) pogwiritsa ntchito chipangizo chofulumira
	Kulumikizana		Kuchokera pamwamba ndi pansi

Ntchito zazikulu za STRO1-40 RCBO

Chitetezo Chowonjezera: Pamene magetsi ozungulira adutsa mtengo wa STRO1-40 RCBO, adzadula deralo mkati mwa nthawi yoikidwiratu kuti ateteze dera ndi zipangizo kuti zisatenthedwe, motero kupewa moto ndi kuwonongeka.

Kutetezedwa kwafupipafupi: Pamene dera lalifupi likuchitika m'dera, STRO1-40 RCBO idzadula mwamsanga dera kuti lisawonongeke kuti zisawononge kwambiri dera ndi zipangizo.

Chitetezo cha Kutayikira: STRO1-40 RCBO imatha kuzindikira zotsalira (ie, kutayikira) mudera. Mphamvu yotsalira ikadutsa malire, STRO1-40 RCBO idzadula dera mu nthawi yaifupi kwambiri kuti ateteze ngozi za electrocution ndi moto wamagetsi.

Mfundo yogwiritsira ntchito STRO1-40 RCBO

STRO1-40 RCBO ili ndi chojambulira chamkati chamkati cha kutentha kwa maginito (choti chizitchinjiriza komanso chitetezo chachifupi) ndi chowunikira chotsalira (choteteza kutayikira). Pamene mphamvu yamakono kapena yotsalira mu dera ili yachilendo, wowombera wofananayo amayambitsa njira yodutsa ya STRO7-40 RCBO, ndikupangitsa kuti idule mofulumira dera.

1.Thermal Magnetic Tripper: Imagwiritsa ntchito kutentha ndi mphamvu ya maginito yomwe imapangidwa pamene panopa ikudutsa pa kondakitala kuti iyambe kugwedezeka. Mphamvu yamagetsi ikakwera kwambiri, kondakitalayo amatenthetsa ndi kupanga mphamvu ya maginito, zomwe zimapangitsa kuti bimetal yomwe ili mkati mwa maginito azitha kupindika kapena maginito kuti akope pakati pachitsulo, motero zimachititsa kuti makina agwedezeke.

2.Residual current detector: Imagwiritsa ntchito zero sequence current transformer kuti izindikire zotsalira zomwe zilipo pakalipano. Mphamvu yotsalira ikadutsa malire oikika, chowunikira chotsalira chimatumiza chizindikiro kumakina odumphadumpha kuti adutse dera.

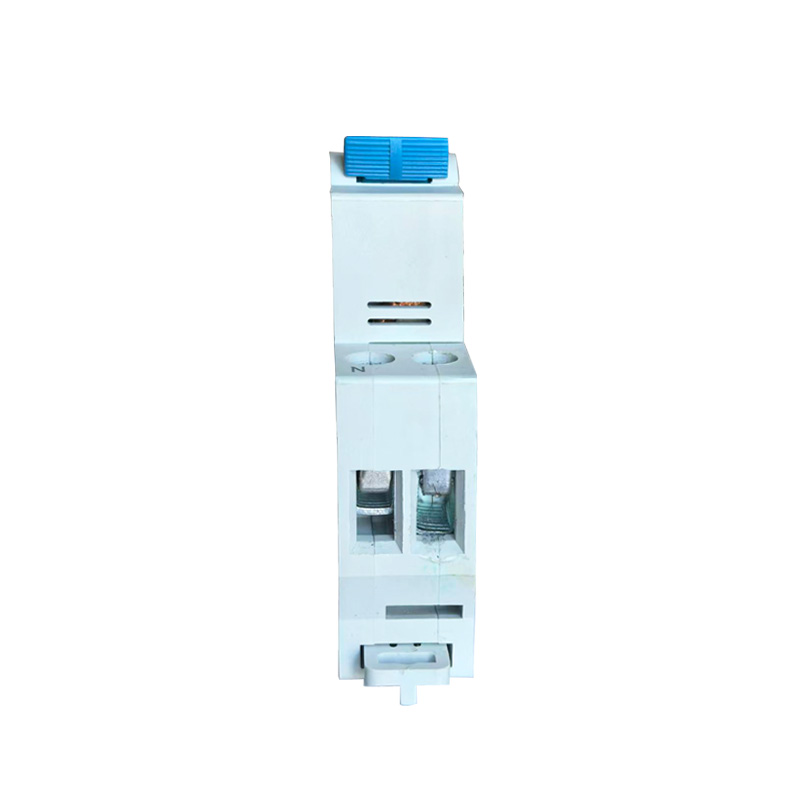

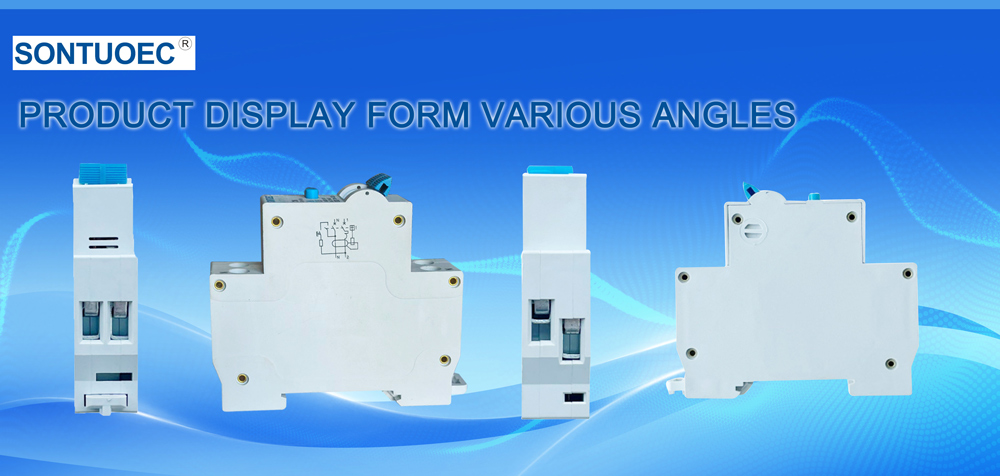

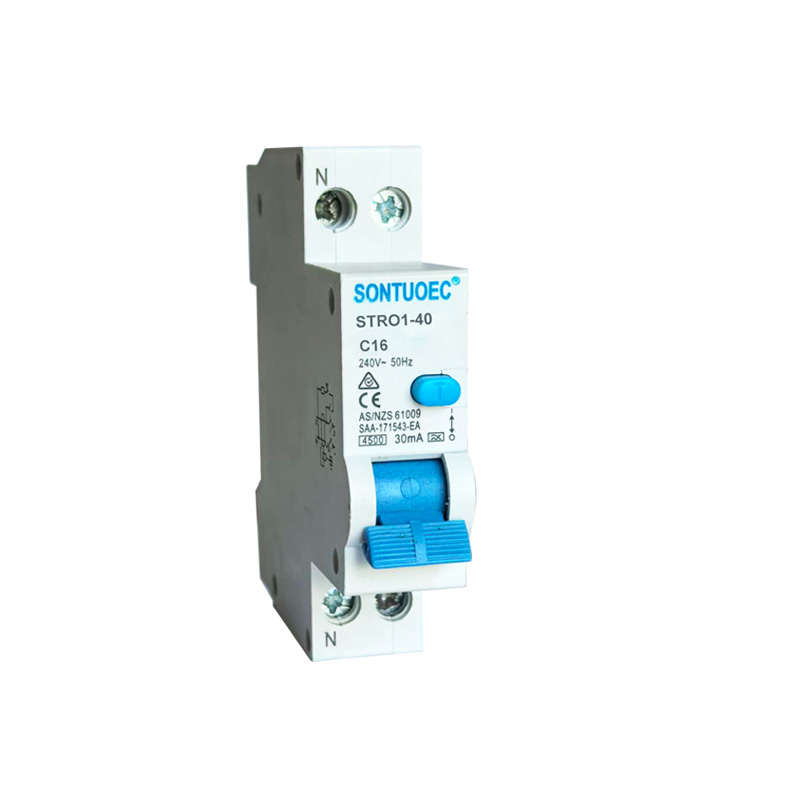

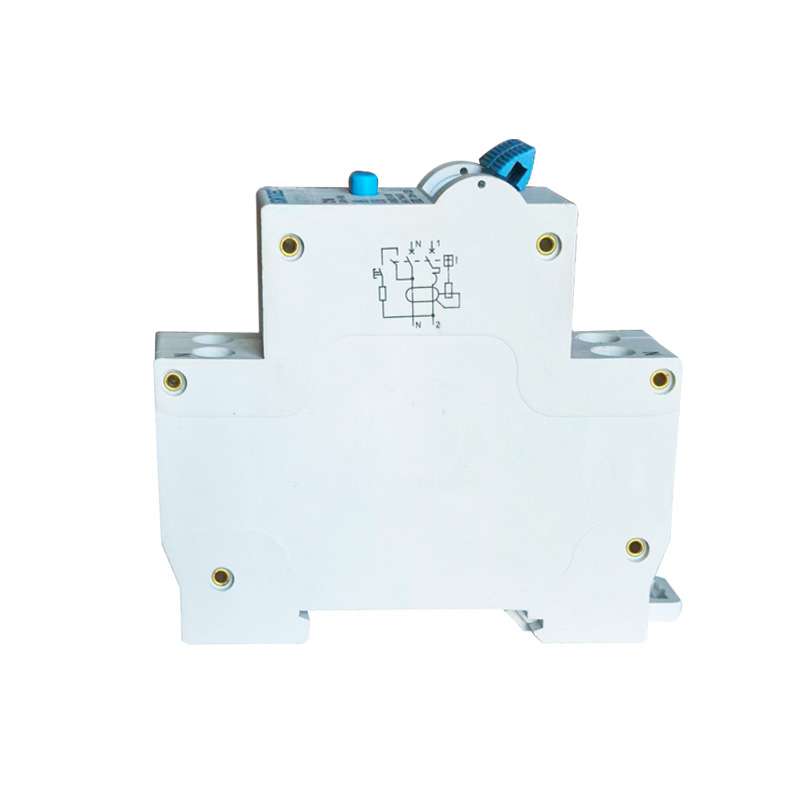

Zithunzi za STRO1-40 RCBO

Kuphatikizika kwazinthu zambiri: STRO1-40 RCBO imaphatikiza ntchito zochulukira, zofupikitsa komanso zoteteza kutayikira, kumathandizira kupanga ndi kukhazikitsa makina amagetsi.

Kukhudzika kwakukulu: STRO1-40 RCBOs imatha kuzindikira mwachangu ndikudula mafunde achilendo komanso otsalira m'derali, kupereka chitetezo chodalirika.

Zosavuta kukhazikitsa ndi kukonza: STRO1-40 RCBOs nthawi zambiri imasinthidwa kuti ikhale yosavuta kukhazikitsa ndi kukonza.

Chitetezo chachikulu: STRO1-40 RCBOs amayesedwa mwamphamvu ndikutsimikiziridwa kuti ali otetezeka kwambiri komanso odalirika kuti awonetsetse kuti magetsi akuyenda bwino.

Mawonekedwe Ogwiritsa Ntchito a STRO1-40 RCBO

STRO1-40 RCBOs amagwiritsidwa ntchito kwambiri m'makina amagetsi m'malo okhala, malonda ndi mafakitale, makamaka omwe amafunikira kuchulukira nthawi imodzi, kutetezedwa kwafupikitsa ndi kutayikira kwapadziko lapansi. Nthawi zambiri amayikidwa m'mabokosi ogawa, ma switchboards kapena makabati owongolera kuti ateteze mabwalo ndi zida kuti zisawonongeke chifukwa champhamvu komanso magetsi, komanso kupewa electrocution.
