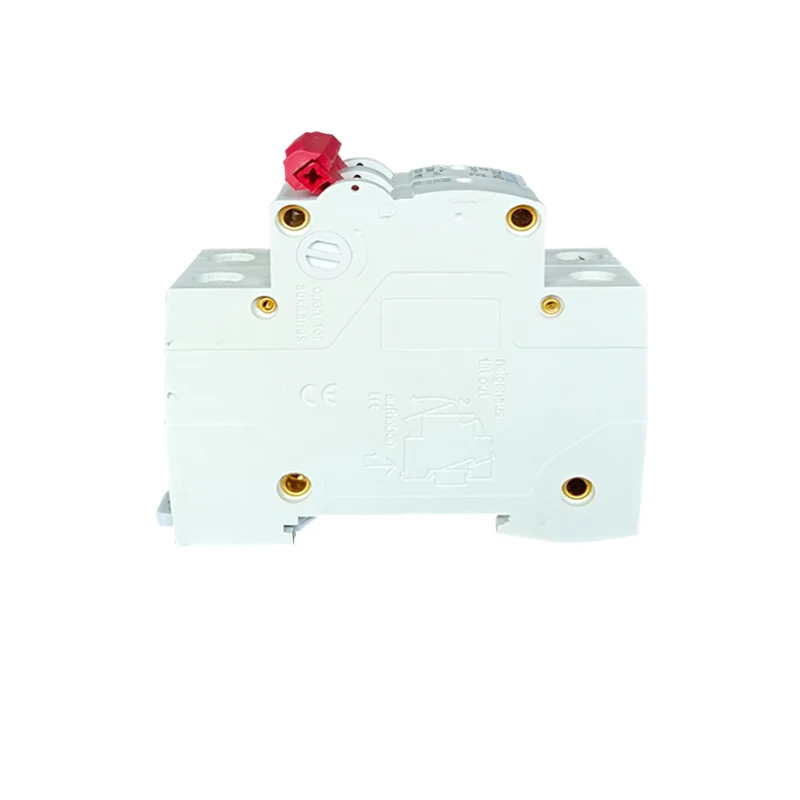

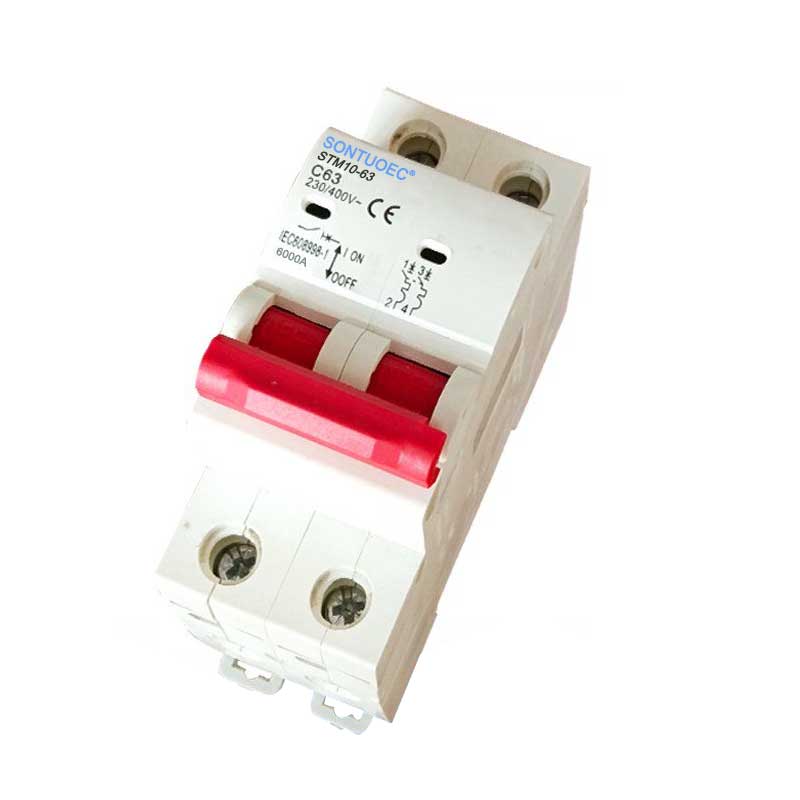

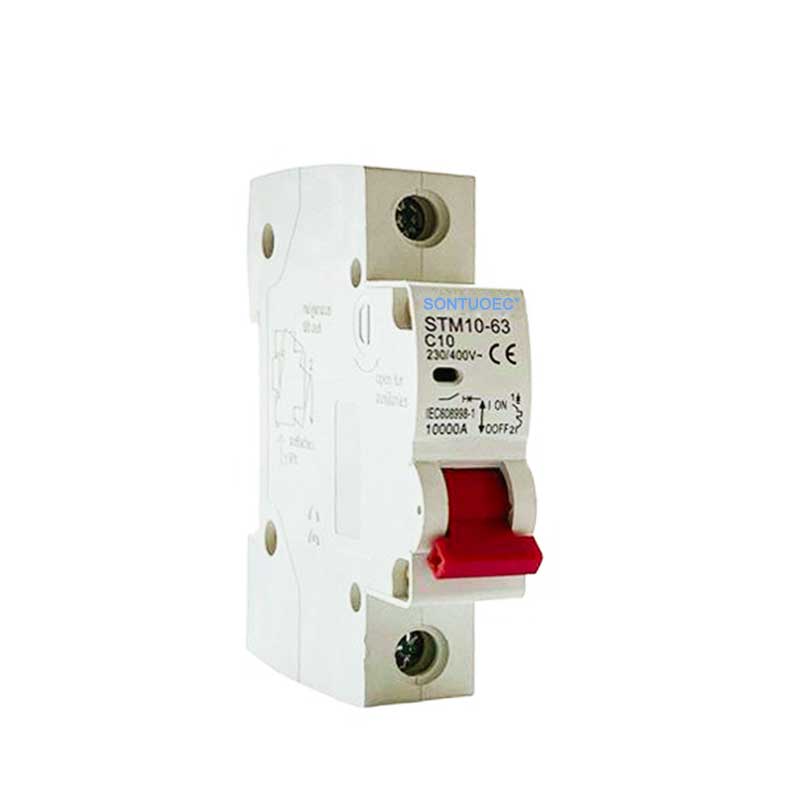

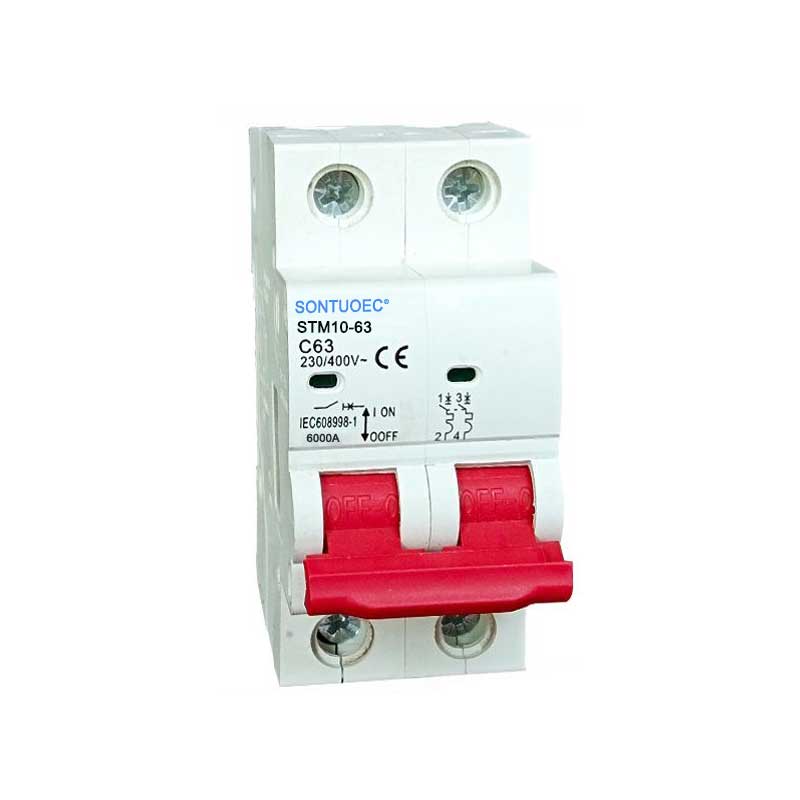

Curve D McB Miniatuner Breaker

Mwa kutsatira mfundo zingapo zachitetezo cha mayiko ndi zovomerezeka, zomasulira za Cyb mcb miniature zimapereka chitetezo chamagetsi ndipo chimagwiritsidwa ntchito kwambiri pakugwiritsa ntchito mitundu yosiyanasiyana ndipo kukhazikika kumafunikira. Mukamasankha ndi kugwiritsa ntchito curve d mcbs, tikulimbikitsidwa kuti kusankha kumakhazikitsidwa pazofunikira zamagetsi ndi mawonekedwe, ndikuti kuyika kwa zikwangwani zofunikira ndikukonzekera.

Chitsanzo:STM10-63

Tumizani Kufunsira

Mafotokozedwe Akatundu

Wofanana		IEC / EN 60898-1
Zamagetsi Mawonekedwe	Adavotera pano	A	1,2,4,610,16,20,32,420,63a
	Mitengo	P	1P, 2p, 3p, 4p
	Adavotera magetsi	V	AC 230/400
	Madiotion Eirge UI	V	500
	Kuvota Frequency	Hz	50/60
	Adavotera	A	3000, 4500, 6000
	Adavotera kukhumudwitsa magetsi (1.2 / 50) UIMP	V	4000
	Magetsi a sekondale ku Ind.freq.Fer 1 min	KV	2
	Digiri yolosera		2
	Makina omasulira a thermo-magnetic		B, c, d
Zazitsulo Mawonekedwe	Moyo wamagetsi	t	4000
	Moyo Wopanga	t	10000
	Degree		Ip20
	Kutentha kwa makonzedwe za mlengalenga	ºC	30
	Kutentha Kwambiri (ndi pafupifupi tsiku lililonse ≤35ºC)	ºC	-5 ~ + 40 (ntchito yapadera chonde onani Kuwongolera kutentha kwa kutentha
	Kutentha	ºC	-25 ~ + 70
Kuika	Mtundu wolumikizirana		Chingwe / pini-chikhomo
	Kukula Kwathunthu / Pansi pa chingwe	mm2	25
		Ez	18 -3
	Kukula kwa Thermil Kukula / pansi pa busbar	mm2	25
		Ez	18 -3
	Kuunikira torque	N * m	2
		Mu-lbs	18
	Kukweza		pa Ster Rair 60715 (35mm) pogwiritsa ntchito chipangizo cha Clip
	Kulumikiza		Kuchokera pamwamba ndi pansi

Makhalidwe Ogulitsa

 Mudavotera zamakono ndi magetsi: ma curve D Mcbs ndioyenera magetsi osiyanasiyana, monga 6a, 15a, 50a, 49a, 49a, 400v, 40hz.

 Kuchotsa mikhalidwe: curve d mcbs makamaka ndizoyenera kuchuluka kwa katundu ndi magetsi omwe amatulutsa mafunde ambiri, monga momwe amapangira magetsi, njira zogawitsira mphamvu zamagetsi, ndi makina opangira mphamvu. Kusuntha kwake kwa nthawi yayitali nthawi zambiri kumapezeka kawirikawiri, komwe kumatanthauza kudula mabwalo ndikuteteza zida kuwonongeka kwadzidzidzi.

Kutetezedwa kwakanthawi: D-Curve McBs kumatha kuwononga kwakukulu, monga momwe mungasinthire kukula kwakanthawi kochepa kwa 6ka pazinthu zina, zomwe zingateteze masitepe kuchokera kumawanda achidule.

Miyezo ya chitetezo ndi chitetezo: Zinthu izi zimatsata mfundo zingapo zachitetezo padziko lonse lapansi, CB, monga / NZC, ndi zina, kuwonetsetsa kuti zinthuzo ndi zotetezeka.

Curve D MCB Miniature Circuit Breaker
