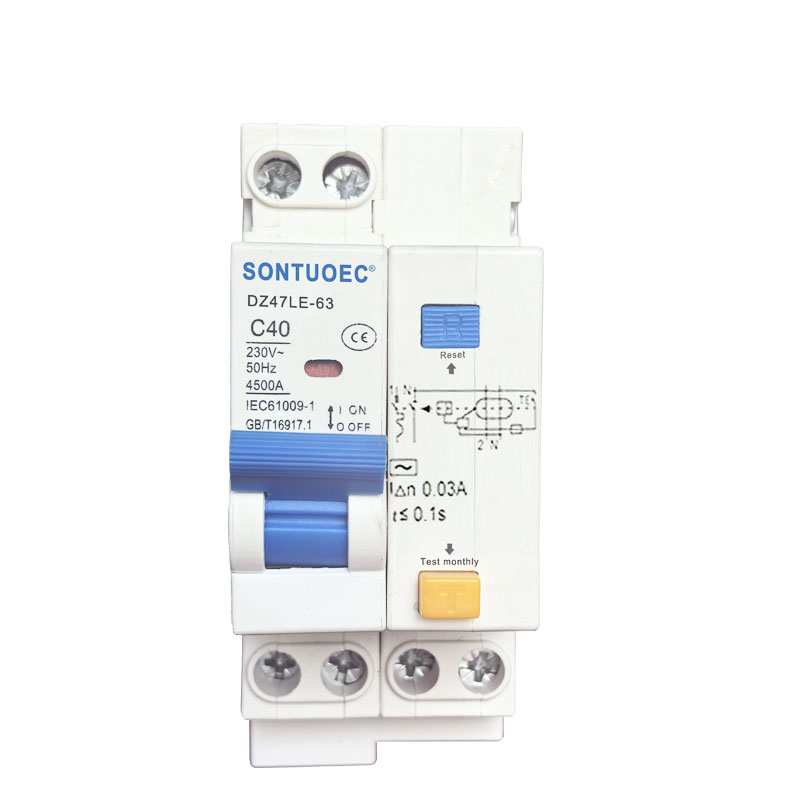

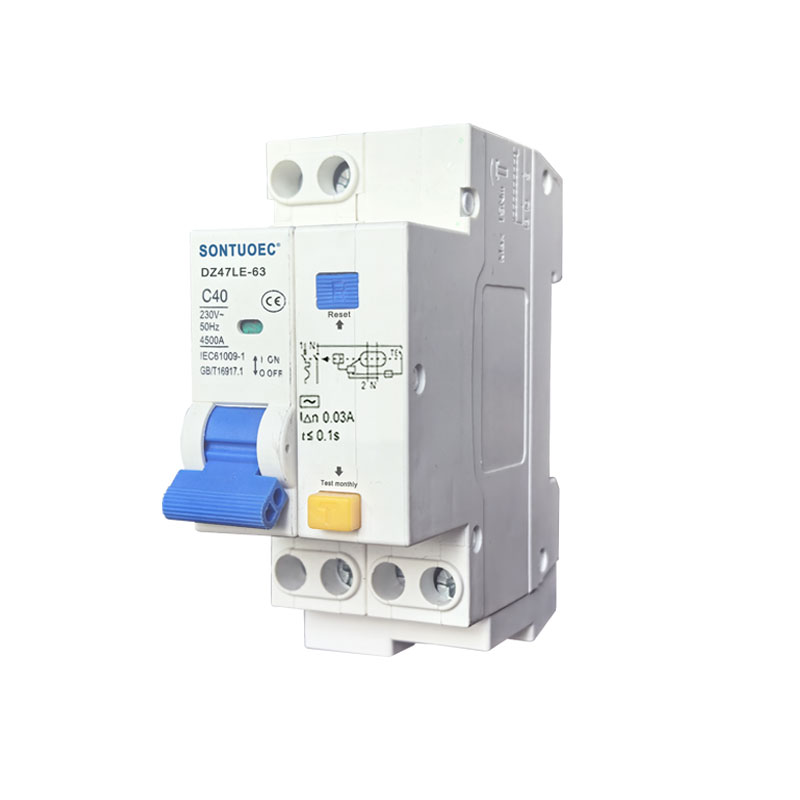

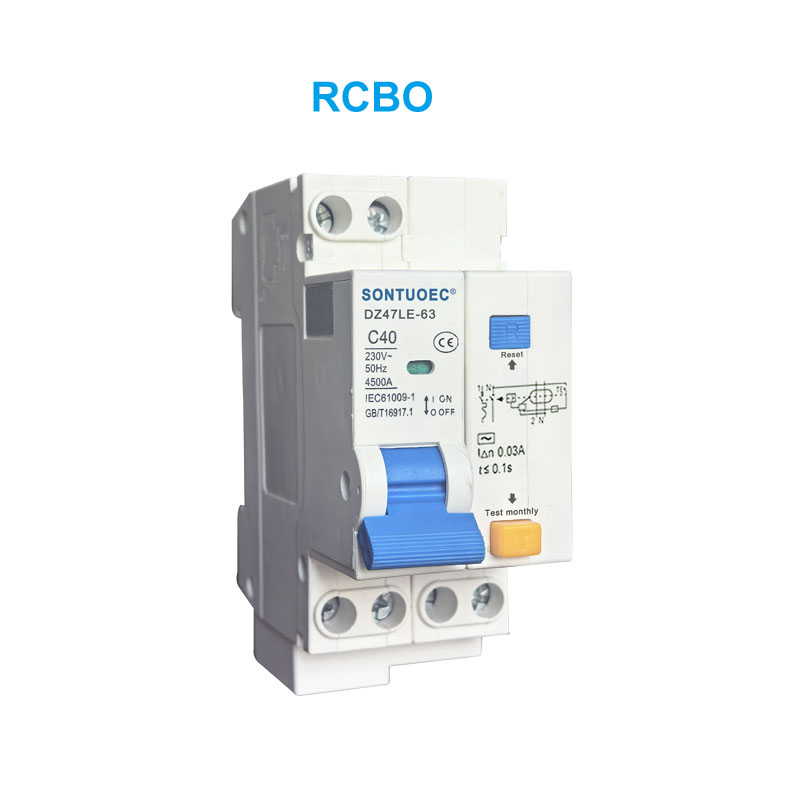

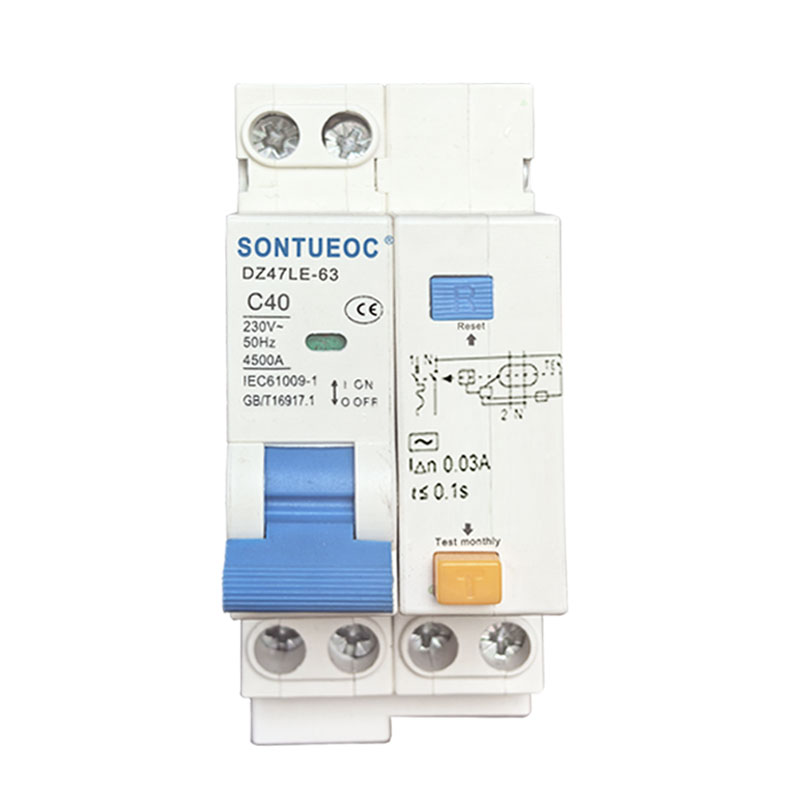

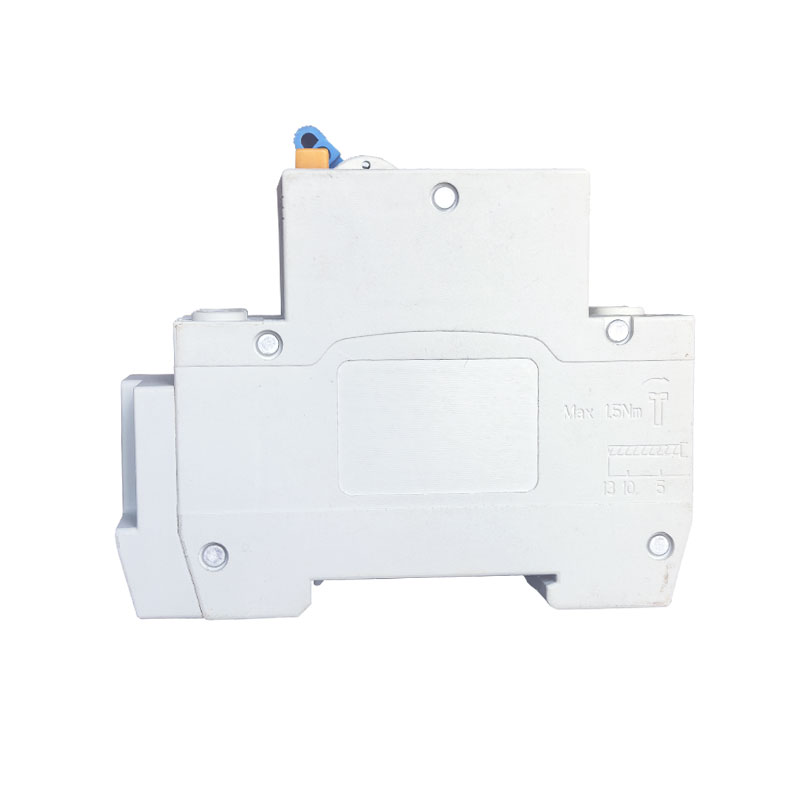

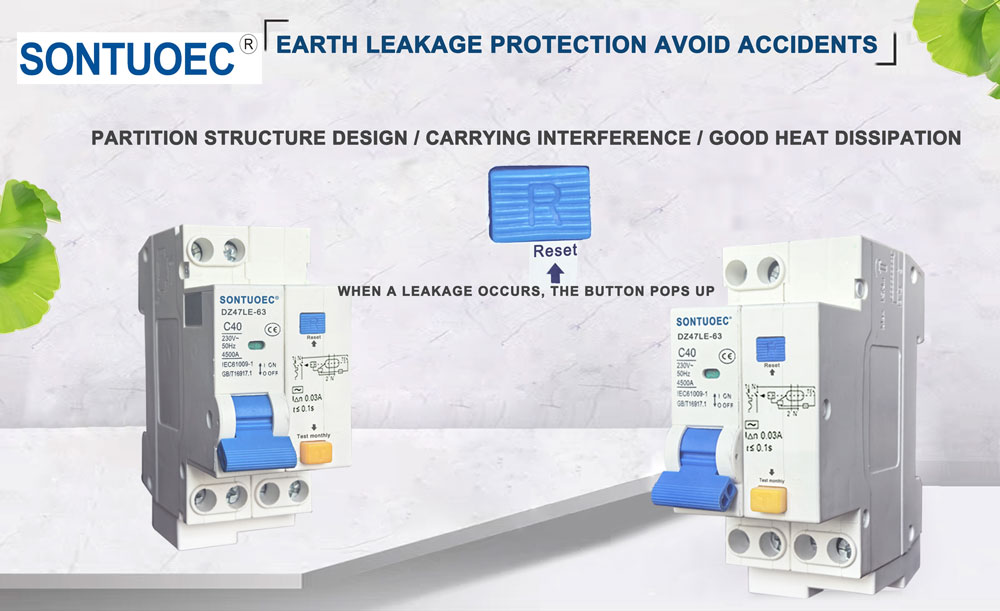

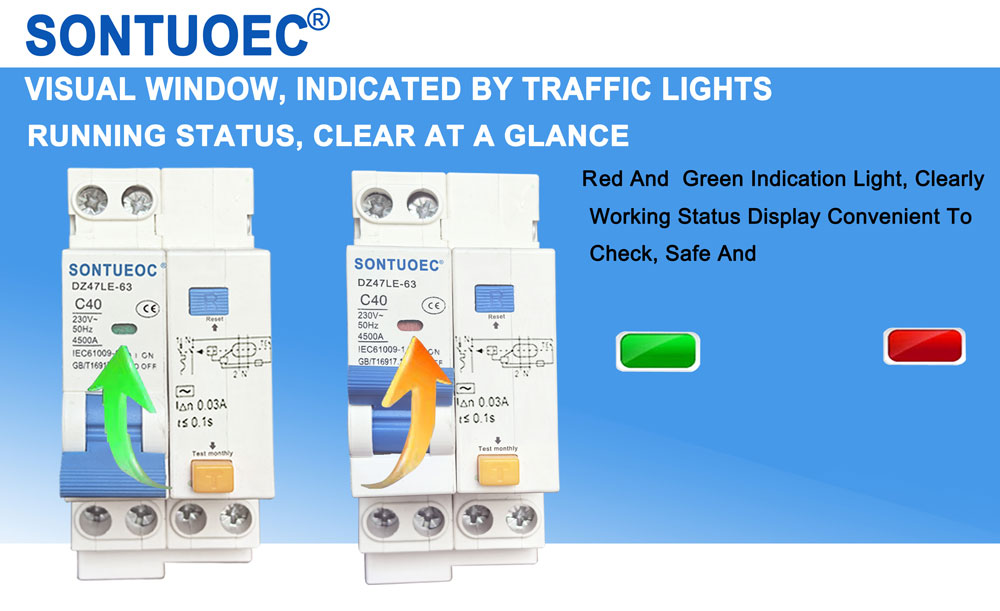

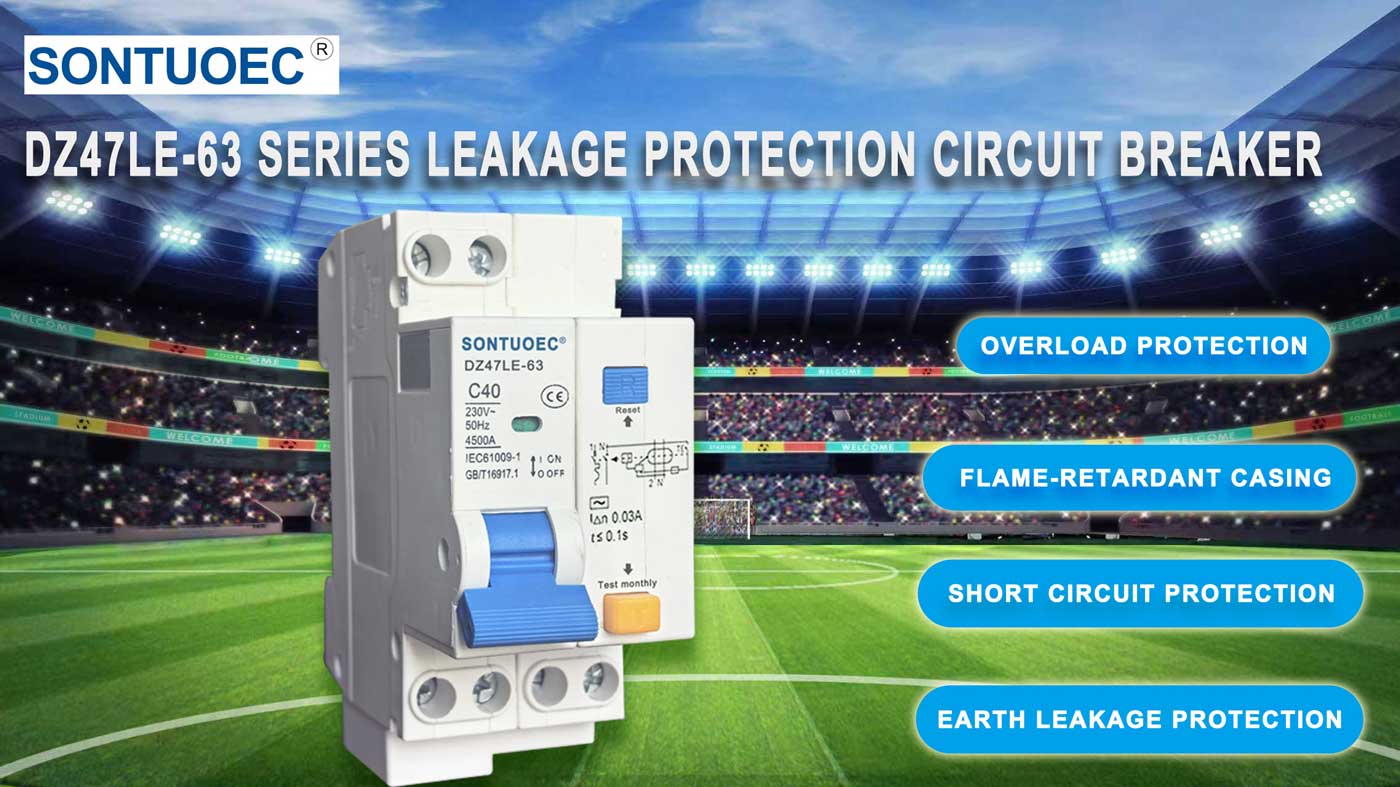

Dz47le-63 RCBO Series Leakage Current Circuit Breaker

SONTUOEC is one of the Chinese suppliers/manufacturers specializing in the production of various small electrical appliances.DZ47LE applicable to a line of AC 50/60Hz rated voltage 230V for single pole two wire, 2 pole or 400V for 3 pole, 3 pole 4 wire. 4 pole ndi panopa mpaka 63A. It can protect the line and motor from overload and short circuit It can also be used for infrequent line conversion and infrequent motor start.It conforms with the standards of IEC61009.1.

Chitsanzo:DZ47LE-63

Tumizani Kufunsira

Mafotokozedwe Akatundu

Zofunika zaukadaulo:

Mphamvu yamagetsi (V)	Idavoteredwa Panopa Mlandu wa Inm(A)	Mitengo	Neutra	Adavotera CurrentIn(A)	Icu(KA) idavotera Short Circuit Breaking Capacity		Adavoteredwa Panopa Kutayikira Kusweka	Idavoteredwa Panopa Sitikutha (mA)
Mphamvu yamagetsi (V)	Idavoteredwa Panopa Mlandu wa Inm(A)	Mitengo	Linel	Adavotera CurrentIn(A)	Breaking Capacity Icu(KA)	COS	(mA))	Idavoteredwa Panopa Sitikutha (mA)
230	6-63	1	N	6,10,16,	6	0.7	30,50,	15, 25,
230	6-63	2		20,25,32,	6	0.7	100,300	50,150
400	6-63	3		40,50,63	6	0.7
400	6-63	3	N		6	0.7
400	6-63	4			6	0.7
230	6-63	1	N		4.5	0.8
400	6-63	2			4.5	0.8
400	6-63	3			4.5	0.8
400	6-63	3	N		4.5	0.8
400	6-63	4			4.5	0.8

DZ47LE Residual Current Operated Circuit Breaker yokhala ndi chitetezo chamakono (Zamagetsi):

1. Kugwiritsa ntchito

Antchito ndi chitetezo moto

Chingwe ndi chitetezo cha mzere kuzinthu zochulukira komanso mafupipafupi

2. Malamulo anthawi zonse posankha RCBO:

a.Rated yotsalira ntchito panopa

Mu ≤ 30 mA: chitetezo chowonjezera ngati mukukumana mwachindunji Mu ≤300 mA: chitetezo chodzitchinjiriza pamoto pakakhala pansi mafunde olakwika

b.Tripping class

Kalasi ya AC - Kuyenda kumatsimikiziridwa kwa sinusoidal, mafunde osinthasintha, kaya akugwiritsidwa ntchito mwachangu kapena akuwonjezeka pang'onopang'ono.

c.Kukhota

C curve (5-10 Mu) chitetezo ndi kuwongolera kwa mabwalo motsutsana ndi zolemetsa ndi zazifupi; chitetezo kwa katundu resistive ndi inductive ndi otsika inrush panopa.

D curve (10-14 In) chitetezo ndi kuwongolera mabwalo motsutsana ndi zolemetsa ndi zazifupi; chitetezo cha mabwalo omwe amapereka katundu wothamanga kwambiri pakutseka kwa dera (zosintha za LV/LV, nyali zowononga).
