Dz47le-63 Series Yogwirizana Yowonekera Kukula Circuit Breaker RCBO

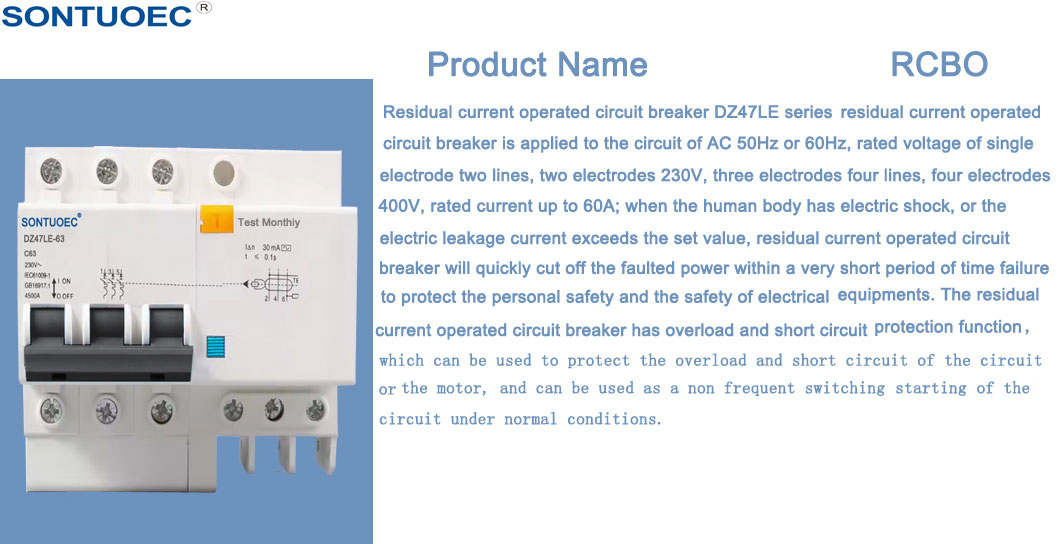

1.RCBO imagwiritsidwa ntchito makamaka mu AC 50Hz(60Hz), voliyumu yovoteledwa 230/400V, yovoteledwa ndi 6A mpaka 63A yotsika yamagetsi yogawa. RCBO ndi yofanana ndi MCB + RCD ntchito; Amagwiritsidwa ntchito poteteza kugwedezeka kwamagetsi ndi chitetezo cha anthu osalumikizana mwachindunji, chitetezo cha zida zamagetsi pamene thupi la munthu likugwira magetsi kapena netiweki yamagetsi yomwe ikuchucha ikuposa mtengo womwe watchulidwa, chitetezo chochulukira komanso chitetezo chachifupi; Ithanso kukhala osagwiritsa ntchito pafupipafupi m'derali, yomwe imagwiritsidwa ntchito movutikira m'malo okhala ndi malonda. Imagwirizana ndi muyezo wa IEC61009-1. 2.MCB imagwiritsidwa ntchito mu AC50/60Hz, voliyumu yovoteledwa ya 230V3, 4 poles 400V, yovotera panopa mpaka 63A kuti itetezeke mochulukira komanso yocheperako komanso pakusintha kosachitika nthawi zonse. Imagwiritsidwa ntchito kwambiri pamakampani, pazamalonda ndi panyumba. Izi zimagwirizana ndi IEC60898 standard. 3.RCCB ikugwirizana ndi miyezo ya IEC61008.Ikhoza kudula dera lolakwika nthawi yomweyo pa nthawi ya ngozi yowopsya kapena kutuluka kwa dziko lapansi kwa trunkline.Motero ndikoyenera kupeŵa ngozi yowopsya ndi moto chifukwa cha kutuluka kwa dziko lapansi.Ikhoza kugwiritsidwa ntchito m'mabwalo mpaka gawo limodzi la 240V, magawo atatu a 40z kapena 60H 60H, 415V, kapena 415VH, 3.

Chitsanzo:DZ47LE-63

Tumizani Kufunsira

Mafotokozedwe Akatundu

Zofotokozera:

Mtengo wa Mtengo wa RCBO

	Standard	Chigawo	IEC/EN 61009-1
Zamagetsi	Mode		Mtundu wamagetsi
Mawonekedwe	Mtundu (mawonekedwe a mafunde a dziko lapansi akutuluka)		A, AC
	Thermomagnetic kumasulidwa khalidwe		B,C,D
	Adavoteledwa pano ln	A	6,10,16,20,25,32,40,63
	Mitengo	P	1P+N, 3P+N
	Adavoteledwa ndi Ue	V	AC 230, 400
	Idavoteredwa sensitivity I△n	A	0.01, 0.03, 0.1, 0.3, 0.5
	Kupanga kotsalira ndikuphwanya mphamvu l△m	A	500
	Idavoteredwa ndi Short-circuit capacity Icn	A	6000
	Nthawi yopuma pansi pa I△n	S	≤0.1
	Adavoteledwa pafupipafupi	Hz	50/60
	Idavoteredwa ndi mphamvu yoletsa mphamvu (1.2/50) Uimp	V	4000
	Dielectric test voltage pa ind.Freq kwa 1min	kV	2
	Insulation voltage Ui	V	250
	Digiri ya kuipitsa		2
Mawonekedwe a makina	Moyo wamagetsi		4000
	Moyo wamakina		10000
	Fault current Indicator		INDE
	Digiri ya chitetezo		IP20
	Kutentha kozungulira	ºC	-5~+40(Ntchito yapadera chonde onani
	(ndi pafupifupi tsiku lililonse≤35ºC)	ºC	kukonza kuwongolera kutentha)
	Kutentha kosungirako	ºC	-25 ~ + 70
Kuyika	Mtundu wolumikizira terminal		Chingwe / Pini-mtundu wa basi / U-mtundu wa basi
	Kukula kokwerera pamwamba/pansi pa chingwe	mm2	25
	Kukula kokwerera pamwamba/pansi pa chingwe	AWG	Masiku 5.18
	Kukula kokwerera pamwamba/pansi kwa busbar	mm2	25
	Kukula kokwerera pamwamba/pansi kwa busbar	AWG	3 Tsiku la 18

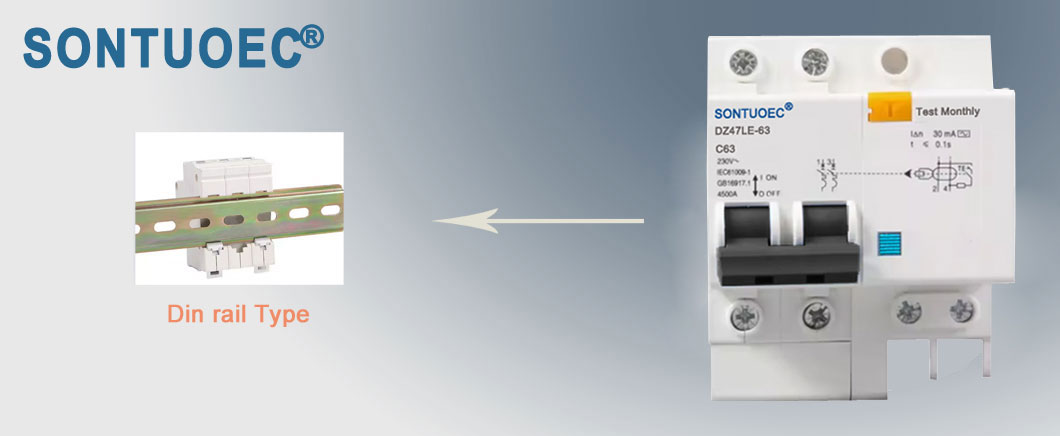

	Kukwera		Pa njanji ya DIN EN 60715(35mm) pogwiritsa ntchito kachipangizo kofulumira
	Kulumikizana		Kuchokera pamwamba

Njira Yowonera:

1. Perekani chitetezo ku vuto la dziko lapansi / kutayikira panopa ndi ntchito yodzipatula

2. High short-circuit panopa kupirira mphamvu3. Imagwira pa terminal ndi pin / foloko mtundu wa busbar

5. Lumikizani mozungulira dera pomwe dziko lapansi lidawonongeka / kutayikira komwe kumachitika ndikupitilira kukhudzika komwe kudavoteredwa

6. Zopanda mphamvu zamagetsi ndi magetsi a mzere, komanso opanda kusokoneza kunja, kusinthasintha kwa magetsi.

MCB

Chitsanzo	MCB
Standard	IEC60898-1
Pole	1P, 2P, 3P, 4P
Tripping Curve	B,C,D
Idavoteredwa Short-circuit capacity(Icn)	3KA,4.5KA,6KA,10KA
Idavoteredwa Panopa(Mu)	1,2,4,6,10,16,20,25,32,40,50,63A
Mphamvu ya Voltage (Un)	AC230(240)/400(415)V
Kutulutsidwa kwa maginito	B curve: pakati pa 3 ndi 5 mkati
	B curve: pakati pa 3 ndi 5 mkati
	C pinda: pakati 5 ndi 10in
	C pinda: pakati 5 ndi 10in
	D kupindika: pakati pa 10 ndi 14In
	D kupindika: pakati pa 10 ndi 14In
Electro-mechanical endurance	pa 6000 cyclesC

Mtengo wa RCCB


	Standard	Chigawo	IEC/EN 61008-1
Zamagetsi	Mtundu (mawonekedwe a mafunde a dziko lapansi akutuluka)		AC, A
Mbali	Adavoteledwa panopa	A	16,25,32,40,63
	Mitengo	P	2, 4
	Adavoteledwa ndi Ue	V	230/400
	Adavotera sensitivity I n	A	0.01,0.03,0.1,0.3
	Insulation voltage Ui	V	500
	Adavotera kupanga zotsalira ndi	A	630
	kuswa mphamvu I m
	Short-circuit current I c	A	4500/6000
	Chithunzi cha SCPD	A	6000
	Nthawi yopuma pansi pa I n	s	<0.1
	Adavoteledwa pafupipafupi	Hz	50/60
	Digiri ya kuipitsa		2
Mechanica I	Moyo wamagetsi	t	4000
Mawonekedwe	MechanicaI Ife	t	20000
	Chizindikiro chaposachedwa		Inde
	Digiri ya chitetezo		IP20
	Kutentha kozungulira	C	Kuyambira -25C mpaka 40C
	(avereji yatsiku ndi tsiku 35)
	Kutentha kosungirako	C	Kuyambira -25C mpaka 70C

FAQ

Q 1. nthawi yolipira ndi chiyani? A. Timavomereza TT, 30% deposit ndi 70% bwino motsutsana ndi buku la BL

Q 2. nthawi yobereka ili bwanji?

A. nthawi zambiri zimatenga masiku 25 kuti apange

Q 3. ndiuzeni muyezo wa phukusi?

A. Nthawi zambiri amakhala makatoni, komanso tikhoza kunyamula malinga ndi zomwe mukufuna.

Q 4.Kodi mungavomere kugwiritsa ntchito logo yathu?

A. Ngati muli ndi kuchuluka kwabwino, palibe vuto kuchita OEM.

Q5. Kodi ndingatenge zitsanzo?

A: Inde, timathandizira kutenga zitsanzo musanayike dongosolo. Ingomasuka kulankhula nafe ngati muli ndi zofunikira.

Q6. Kodi ndinu Factory yoyambirira?

Yankho: Inde, tili ndi fakitale yathu.

Q7. Kodi mungatsimikize bwanji kuti zinthu zili bwino?

Yankho: Tidzagwirizana ndi miyezo yapadziko lonse lapansi kuti tiziyendera chilichonse tisanachoke kufakitale yathu. Lumikizanani ifeZikomo chifukwa cha kuwerenga kwanu. Ngati chinthu chilichonse chikukwaniritsa zosowa zanu. Takulandilani kuti mutitumizire imelo kapena kudzera pa Wechat ndi WhatsApp.
