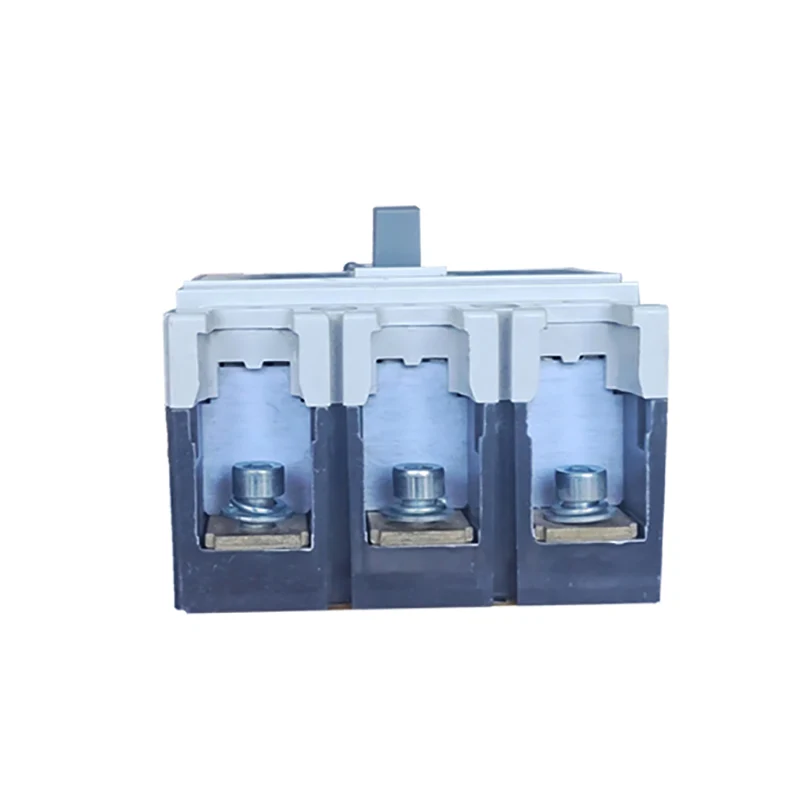

Magetsi Molded Case Circuit Breaker

Electric Molded Case Circuit Breaker ndi mtundu wa zida zamagetsi zomwe zimakhala ndi ntchito zodzitchinjiriza monga kuchulukirachulukira, kuzungulira pang'ono komanso pansi pamagetsi. Mfundo yake yogwirira ntchito ndi yakuti pansi pazikhalidwe zogwirira ntchito, woyendetsa dera amakhala wotsekedwa, pamene dera likudzaza, chigawo chachifupi kapena pansi pa voteji ndi zolakwika zina, wophwanya dera adzadzipatula yekha, kuti ateteze dera ndi chitetezo cha zipangizo.

Chitsanzo:STM1-250L

Tumizani Kufunsira

Mafotokozedwe Akatundu

Chitsanzo		Chithunzi cha STM1-125			Chithunzi cha STM1-250			Chithunzi cha STM1-400			Chithunzi cha STM1-630			Chithunzi cha STM1-800			Chithunzi cha STM1-1250
Adavotera Cortirucus Curt		125			250			400			630			800			1250
Adavotera Curert hn(A)		16,20,25,32,40.50			100,125,140,160,			250,315,350,400			400,500,630			630,700,800			80,010,001,250
		63,80,100,125			180,200,225.25
Adavotera Operating Votage Ue(V)DC								500,550,7			501,000
Adavotera Isuation Votage UKV)		1000			1000			1500			1500			1500			1500
Uimp (KV)
Yesani Votage One Miute(V)		3500			3500			3500			3500			3500			3500
Kuphwanya Mphamvu (KA)		L	M	H	L	M	H	L	M	H	L	M	H	L	M	H	L	M	H
ku(1cs=75%ku)	250V	25	35	50	35	50	65	35	50	65	35	50	65	50	65	80	50	65	80
	500V	25	25	50	35	35	65	35	35	65	35	35	65	50	50	80	50	50	80
	750V	25	15	50	35	25	65	35	25	65	35	25	65	50	35	80	50	35	80
	1000V	25	10	50	35	15	65	35	15	65	35	15	65	50	20	80	50	20	80
Mechaarical Iye	Nthawi	7000			7000			4000			4000			2500			2000
Moyo Wamagetsi	Nthawi	2000			2000			1000			1000			800			600
Nthawi Yopuma (ms)		20			20			20			20			20			20
Kuyika Malo		Malo aliwonse
mphamvu ya bolator		inde
Standard		IEC 60947-2, IEC60947-1,GB 14048,GB 14048-2
Kutentha(C)		25 ℃-50 ℃
Kuchepetsa Chitetezo		b20
Chowonjezera		YA/SD/MX
Mtunda Wokwera (mm)		250

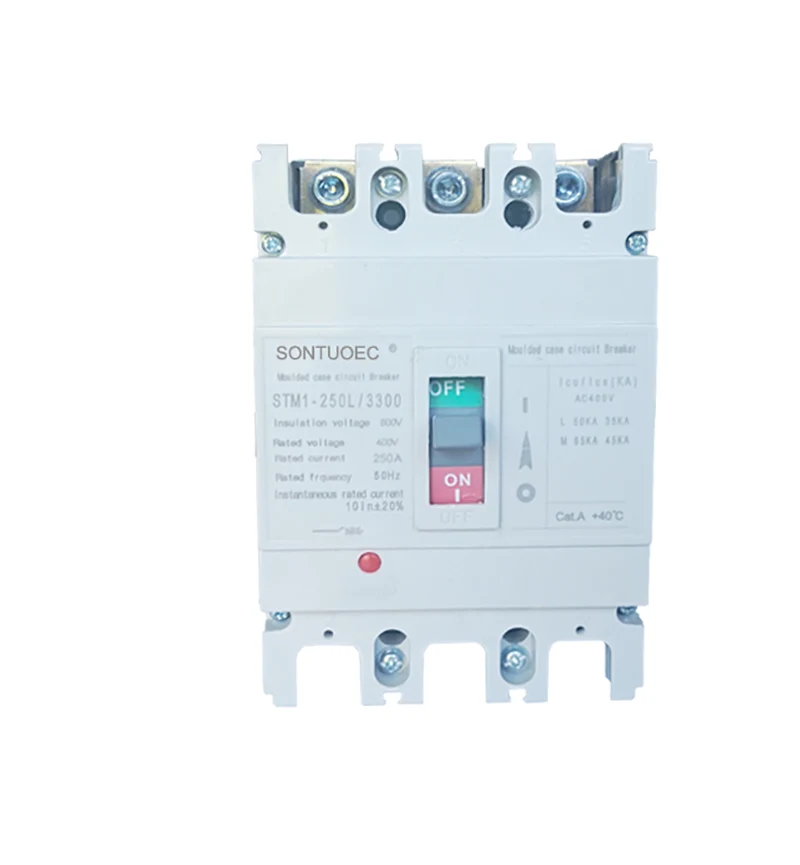

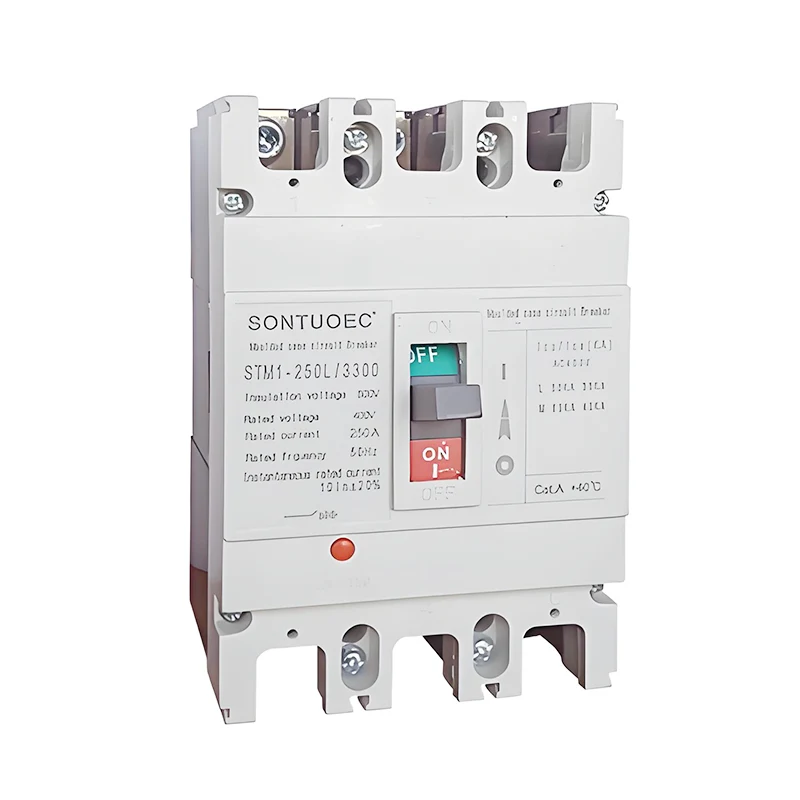

Chitsanzo AYI.	STM1-250L/3300
Arc-kuzimitsa Medium	Mpweya
ZOYENERA:	IEC 60947-2
Kapangidwe	Mtengo wa MCCB
Mtundu	Mlandu wa Moulede Circuit Wophwanya
Chitsimikizo	CE
Zovomerezeka	CE, ISO9001
Nthawi yoperekera	Mkati 20days
Kufotokozera	63A-630A
Chiyambi	Wenzhou Zhejiang
Mphamvu Zopanga	2000pieces / Sabata
Liwiro	Normal Type Circuit Breaker
Kuyika	Zokhazikika
Nambala ya Poles	3P 4P
Ntchito	Wamba Circuit Breaker, Chitetezo chamtundu wamtundu wamtundu, Chitetezo Chachikulu
Mtengo	Fakitale Mtengo
Nthawi ya Waranti	12 miyezi
Phukusi la Transport	Mkati Bokosi/Katoni
Chizindikiro	SONTUOEC,WZSTEC,SONTUNE,IMDEC
HS kodi	8536200000

Kapangidwe ndi mawonekedwe

Kapangidwe: chowotcha chamagetsi chopangidwa ndi magetsi nthawi zambiri chimakhala ndi makina olumikizirana, makina ozimitsa a arc, makina ogwiritsira ntchito, kumenya, ndi chipolopolo ndi mbali zina.

Mawonekedwe:

Ili ndi mphamvu yosweka kwambiri komanso kukhazikika kwamphamvu kwamafuta.

Chigobacho chimapangidwa ndi zinthu zoteteza moto, zosagwira ntchito ndi arc, zokhala ndi chitetezo chambiri.

Makina ogwiritsira ntchito ndi osinthika komanso odalirika, omwe ndi abwino kwa ogwiritsa ntchito pamanja kapena pamagetsi.

The disconnector ili ndi ntchito zosiyanasiyana zotetezera, ndipo imatha kuchita zinthu zofanana malinga ndi zolakwika zosiyanasiyana za dera.

Ntchito ndi kugwiritsa ntchito

Ntchito: Magetsi opangidwa ndi magetsi amakhala ndi ntchito zosiyanasiyana zoteteza monga chitetezo chochulukira, chitetezo chachifupi, chitetezo chamagetsi ndi chitetezo chotuluka. Pakati pawo, chitetezo cholemetsa chimatanthauza kuti dera likadzaza, woyendetsa dera amatha kusokoneza dera kuti ateteze zipangizo kuti zisawonongeke chifukwa cha kutentha; kutetezedwa kwafupipafupi kumatanthauza kuti pamene kachigawo kakang'ono kamene kakuchitika m'derali, woyendetsa dera amatha kuchotsa mwamsanga vutolo kuti ateteze moto ndi ngozi zina zachitetezo; Kutetezedwa kwamagetsi kumatanthawuza kuti mphamvu yamagetsi ikatsika kuposa mtengo wake, wophwanya dera amatha kulumikiza dera kuti ateteze zida kuti zisawonongeke; ndi kuteteza kutayikira kumatanthauza kuti pamene kutayikira kumachitika m'dera, wophwanya dera amatha kudula nthawi yake kuti ateteze chitetezo chamunthu. Kuteteza kutayikira kumatanthawuza kuti wophwanya dera amatha kudula magetsi munthawi yomwe kutayikira kwaderako kumateteza chitetezo chamunthu.

Ntchito: Magetsi opangidwa ndi magetsi amagwiritsidwa ntchito kwambiri pamakina amagetsi m'malo okhala, malonda, mafakitale ndi zoyendera. M'munda wokhalamo, umagwiritsidwa ntchito kuteteza chitetezo cha maulendo apanyumba ndi zipangizo zamagetsi; m'munda wamalonda, amagwiritsidwa ntchito kuteteza machitidwe amagetsi a nyumba zazikulu ndi malo ogulitsa; m'munda wamafakitale, amagwiritsidwa ntchito kuwongolera ndi kuteteza chitetezo cha zida zamafakitale ndi makina; m'munda wamayendedwe, imagwiritsidwa ntchito kuteteza magwiridwe antchito okhazikika amagetsi, ma sign anjanji ndi zida zina.
