AC8-100 a AC pa Nyumba Zapakatikati zimapangidwa kuti ac 50hz (kapena 60hz), ndi voliyumu yovota mpaka 400V. Amakhala ndi ntchito yomwe ili m'manja mwa 100a pansi pa gulu la AC-7a ndi mpaka 40a pansi pa gulu la AC-7b. Otsutsa awa amagwiritsidwa ntchito kuwongolera katundu wotsika kapena wosakhazikika pazopezeka komanso zofananira, komanso zowongolera magalimoto apabanja. Chogulitsacho chimagwiritsidwa ntchito makamaka m'makomo, hotelo, nyumba, nyumba zokhala ndi boma, nyumba za anthu, malo ogulitsira masewera, etc., kukwaniritsa ntchito zowongolera. Miyezo Yogwirizana: IEC61095, GB / T17885.

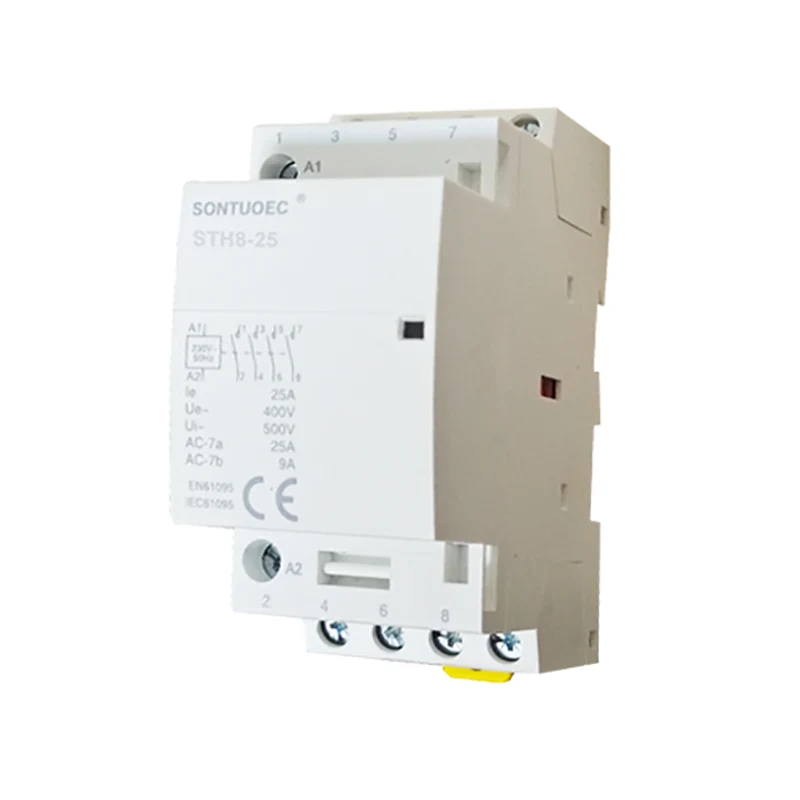

Chitsanzo:STH8-25

Tumizani Kufunsira

Mafotokozedwe Akatundu

Mtundu	kugonjetsa
Muyeso wa	16	20	25	32	40	63	100
Edzi	Inde
Boctiindication wothandizira	Inde
Bangilera kuwongolera othandiza chikasu ma clips	Inde

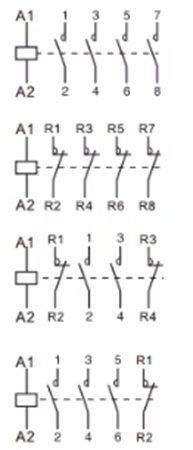

Mtundu					M'lifupi 9mm ma module
1P	Muyeso (LN) Ac-7a	Muyeso (LN) Ac-7a	Kulamula Voteji (IP) (50hz)	Peza
	16a	6a	24	1no	2
	20a	7a	110	1nc
	25a	9a	230
2p
	16a	6a	24	10no	2
	20a	7a	110	1no + 1Nc
	25a	9a	230	2nc
	32NA	12a	24	10no	4
	40a	18a	110	1no + 1Nc
	63A	25a	230	2nc
	100a	_	24		6
			110	10no
			230
3p
	16a	6a	24	3no	4
	20a	7a	110	3C
	25a	9a	230
	32NA	12a	24	3no	6
	40a	18a	110	3C
	63A	25a	230
4p
	16a	6a	24	4no	4
	20a	7a	110	4nc
	25a	9a	230	2no + 2nc 3NO + 1NC
	32NA	12a	24	4no	6
	40a	18a	110	4nc
	63A	25a	230	2no + 2nc 3NO + 1NC
	100a	_	24	4no	12
			110
			230

Kapangidwe chachikulu

Ma AC One exOR nthawi zambiri amakhala ndi magawo otsatirawa:

Dongosolo Lolumikizana: Kuphatikiza olumikizirana ndi othandizira. Kulumikizana kwakukulu kumagwiritsidwa ntchito kuyatsa ndikuphwanya dera lalikulu, komwe nthawi zambiri kumakhala ndi zokulirapo; Kulumikizana kwa Othandizira kumagwiritsidwa ntchito poyatsa ndikuphwanya dera lowongolera, komwe kuli ndi zochepa zomwe zidavotera zamakono.

Makina a Electromagnetic: Imakhala ndi chitsulo chachitsulo, chopanda ndalama komanso coil. Ngati coil imapatsidwa mphamvu, chipinda chimatulutsa maginito omwe chimakopa chida chake ndikutseka machemu; Chipindacho chikaphatikizidwa, mphamvu yamagetsi imatha, yomwe ya zida imatulutsidwa ndipo kulumikizana kumasweka.

Chida cha Arc chowoneka bwino: omwe amagwiritsidwa ntchito kuzimitsa marc pomwe machesi amapezedwa, kupewa arc kuti asawononge kulumikizana.

Chipolopolo ndi zowonjezera: chipolopolo chimagwiritsidwa ntchito kuteteza zigawo zamkati kuchokera ku chilengedwe; Chalks ndi zina zowonjezera, zotchingira, ndi zina zowonjezera, zomwe zimagwiritsidwa ntchito kuzindikira kuyikapo ndikuwombera.

Mfundo yofunika kugwirira ntchito

Mfundo ya ntchito ya ntchito ya pasukulu imakhazikitsidwa pa mfundo ya mawonekedwe a elemaboraginetic. Pamene coil imapatsidwa mphamvu, core ciron core imatulutsa mphamvu yamagalasi yomwe imakopa mabwalo ndikutseka machemu; Chipindacho chikaphatikizidwa, mphamvu yamagetsi itawonongeka, yamagetsi imamasulidwa ndipo kulumikizana kumakhazikika. Mwa kuwongolera mphamvu ndi kupanga mphamvu ya coil, kuwongolera kutali ndi chitetezo cha mabwalo apakati kumatha kukwaniritsidwa.

Magawo aluso

Magawo apamwamba a maluso a panyumba amaphatikizapo magetsi ovota, omwe adavotera pafupipafupi, kulumikizidwa ndikulumikiza komanso kuwononga mphamvu. Kusankhidwa kwa magawo awa kuyenera kutsimikiza mtima malinga ndi momwe gulu la nyumbayo likuwonetsetsa kuti ntchitoyo igwiritse ntchito bwinobwino.

Magetsi ovota: amatanthauza kuchuluka kwa magetsi pomwe woloza ntchito amagwira ntchito bwino.

Yovota Pakale: Kutanthauza kuchuluka kwa zomwe zilipo komwe kulipondaponse komwe kulipondana nthawi yayitali pansi pa magetsi ovota.

Kuvotera pafupipafupi: pafupipafupi magetsi omwe amagwiritsa ntchito nthawi zambiri.

Kulumikiza ndi kuphwanya mphamvu: Zapamwamba kwambiri zomwe kugonjetsedwa kumatha kulumikizana ndi nthawi yopumira.
