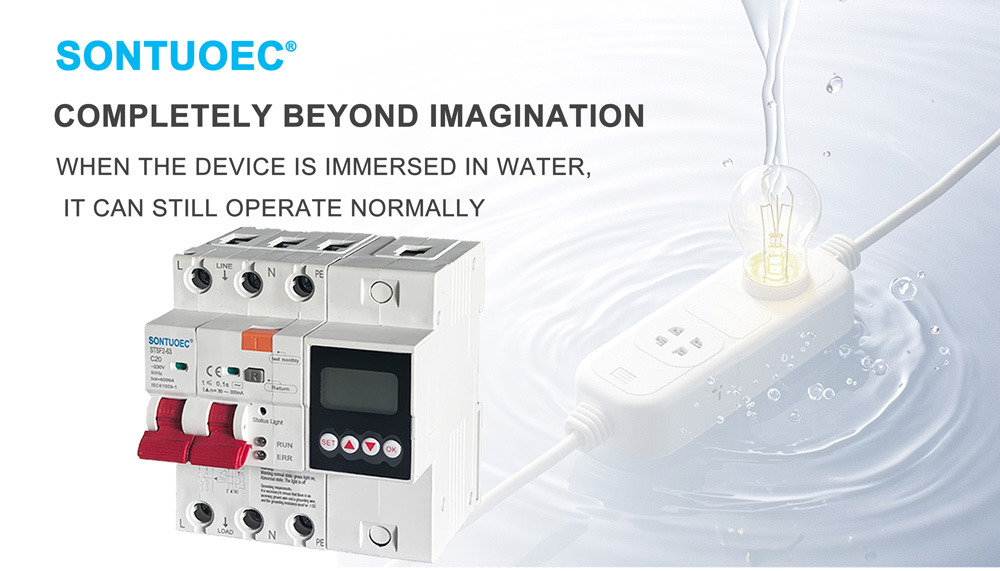

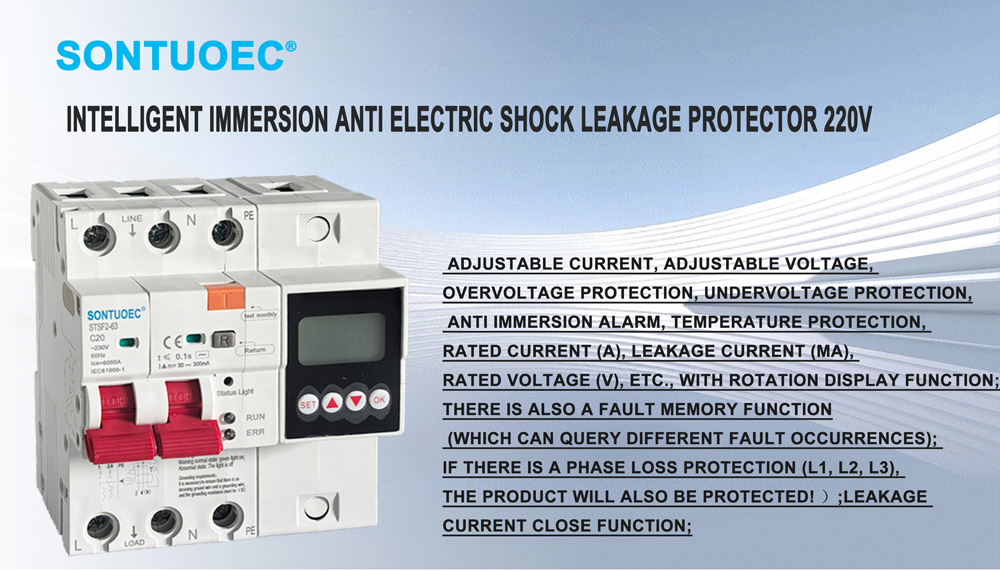

Wanzeru kumizidwa anti electric shock leakage protector 220V air circuit breaker

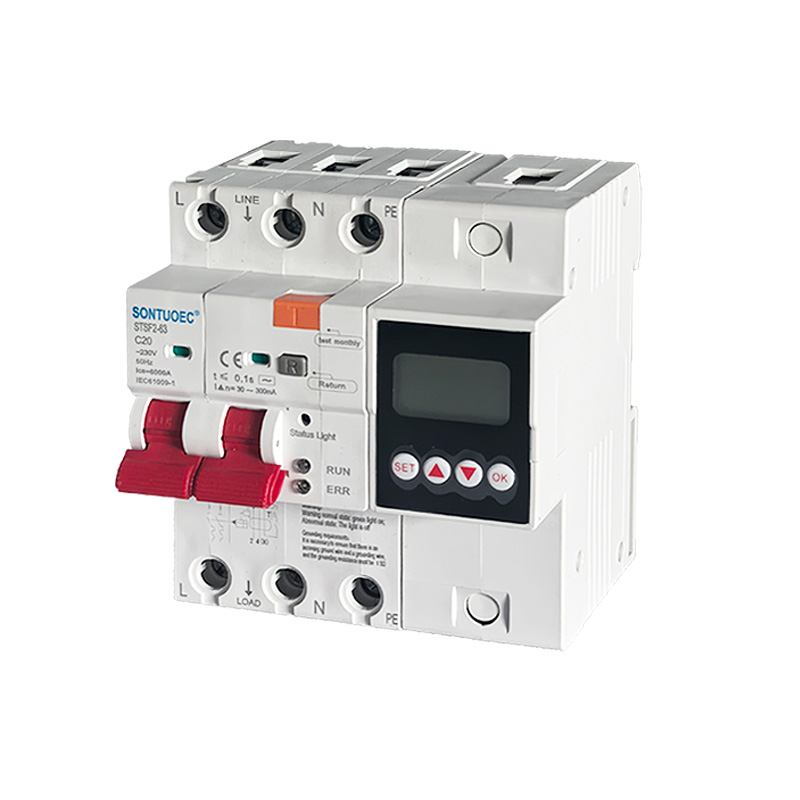

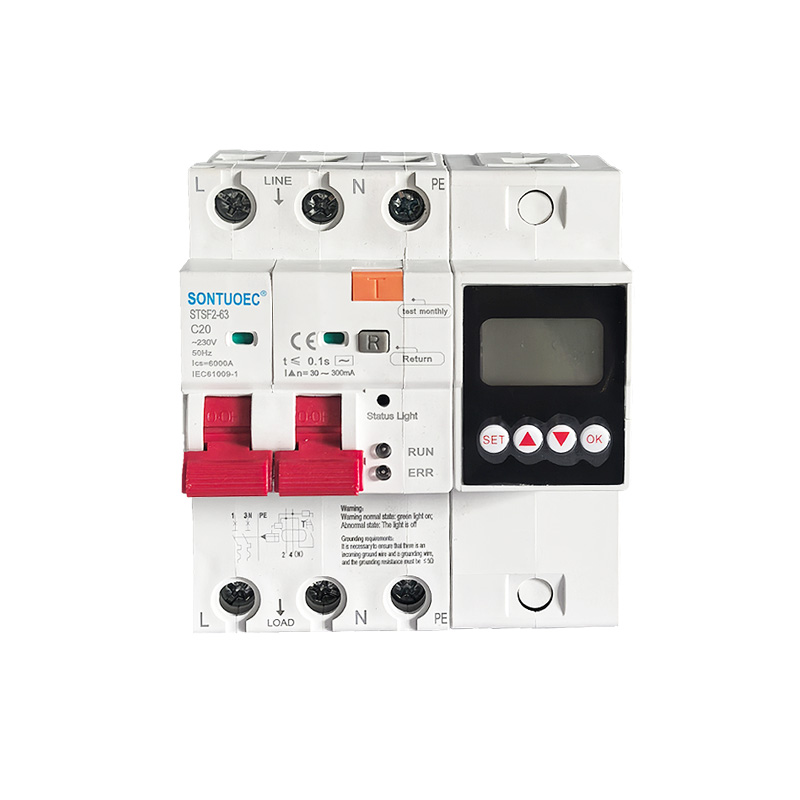

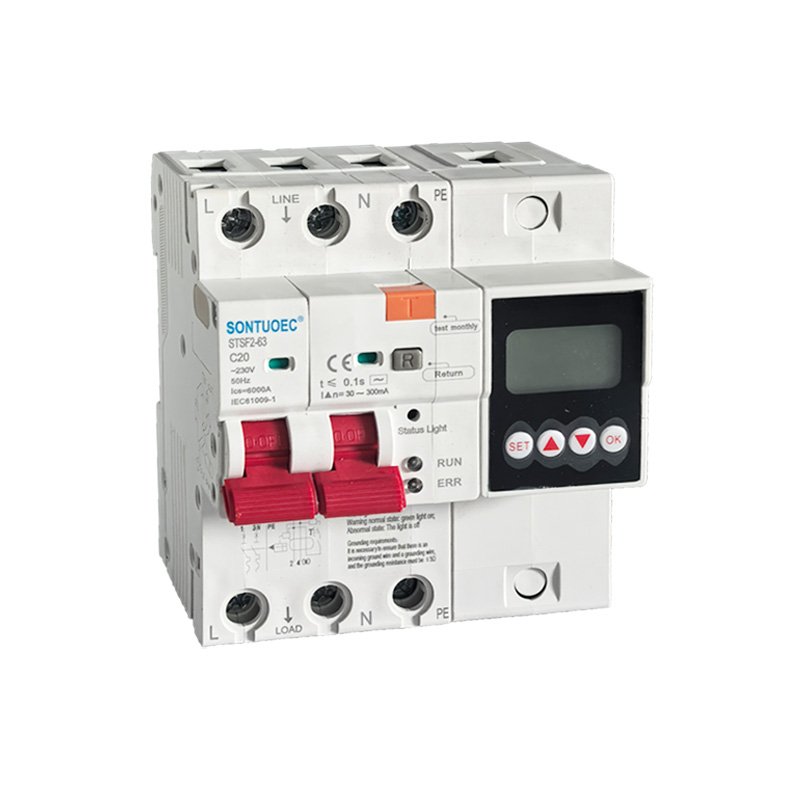

STSF2-63/100 100A 2p 4p Multifunctional RCBO ndi oyenera AC 50/60Hz, oveteredwa mu dera ndi voteji 230V-400V ndi oveteredwa panopa 100A, pamene aperson ndi electrocuted kapena gululi mphamvu kutayikira. Pamene kutayikira, overvoltage, ndi undervoltage kufika pa makhalidwe, yotsalira panopa dera breaker akhoza mwamsanga ntchito mu nthawi yochepa kwambiri mwamsanga kudula magetsi. Pamene kutentha koyang'anira kwa wotsalira wamakono wotsalira kumafika pamtengo wokhazikitsidwa, waya wowunika pansi sakulumikizidwa. Mukalumikizidwa, mankhwalawa amatulutsa alamu kuti ateteze chitetezo cha ogwira ntchito ndi zida zamagetsi, ndipo amatha kupewa Pewani kuwonongeka kwa zida zomwe zimachitika chifukwa cha kuchuluka kwamagetsi mu gridi yamagetsi. Ili ndi zochulukira, zozungulira zazifupi, kutayikira, kuchulukirachulukira Kutsika kwamagetsi ndi ntchito zoteteza kutentha kwambiri zitha kugwiritsidwanso ntchito kuyatsa ndikuzimitsa zida zamagetsi nthawi zonse. Mabwalo ounikira, makamaka oyenera kugawa zowunikira zamakampani ndi zamalonda. Chogulitsacho chimakhala ndi voliyumu yaying'ono, kapangidwe kake kophatikizana, komanso kutsika mtengo kuposa zinthu zina zofananira. Ali ndi mawonekedwe okongola, Kuthamanga kwakukulu kumapangitsa kukhala chisankho chabwino kugawa mphamvu zapakhomo. Chogulitsachi chikugwirizana ndi miyezo ya GB/T 16917.1 ndi IEC 61009-1 ndipo walandira chiphaso cha CE.

Chitsanzo:STFS2-63

Tumizani Kufunsira

Mafotokozedwe Akatundu

MFUNDO:

Zamagetsi Mawonekedwe	Standard	Chigawo	IEC/EN 61009-1
	Mode		Mtundu wamagetsi
	Mtundu (mawonekedwe a mafunde a dziko lapansi akutuluka)		AC
	Thermomagnetic kumasulidwa khalidwe		B,C,D
	Adavotera pano ln	A	6-100A(6,10,16,20,25,32,40,63;80,100A) Zosinthika
	Mitengo	P	1P+N, 3P+N
	Adavotera Ue	V	AC 230, 400 (Yosinthika)
	Adavotera sensitivity I△n	A	30-300mA(30,100,300mA) Zosinthika
	Chovoteledwa chotsalira kupanga ndi kuswa mphamvu l△m	A	500
	Idavoteredwa ndi Short-circuit capacity Icn	A	6000
	Nthawi yopuma pansi pa I△n	S	≤0.1
	Adavoteledwa pafupipafupi	Hz	50/60
	Idavoteredwa ndi mphamvu yoletsa mphamvu (1.2/50) Uimp	V	4000
	Dielectric test voltage pa ind.Freq kwa 1min	kV	2
	Insulation voltage Ui	V	250
	Digiri ya kuipitsa		2
Other	Kutetezedwa kwamphamvu / pansi pamagetsi;	ndi	Chitetezo cha Kutentha ; Zozimitsa moto ndi zina
Mawonekedwe amakina	Moyo wamagetsi		4000
	Moyo wamakina		10000
	Fault current Indicator		INDE
	Digiri ya chitetezo		IP20
	Kutentha kozungulira	ºC	-5~+40(Ntchito yapadera chonde onani
	(ndi pafupifupi tsiku lililonse≤35ºC)	ºC	kukonza kuwongolera kutentha)
	Kutentha kosungirako	ºC	-25 ~ + 70
Kuyika	Mtundu wolumikizira terminal		Chingwe / Pin-type busbar/U-type busbar

	Kukula kokwerera pamwamba/pansi pa chingwe	mm2	25
	Kukula kokwerera pamwamba/pansi pa chingwe	AWG	18-5
	Kukula kokwerera pamwamba/pansi kwa busbar	mm2	25
	Kukula kokwerera pamwamba/pansi kwa busbar	AWG	18-3
	Kukwera		Pa njanji ya DIN EN 60715(35mm) pogwiritsa ntchito chipangizo chofulumira
	Kulumikizana		Kuchokera pamwamba

KUZUNGULIRA KWA AIR TEMPERATURE:

1.Kutentha kwa mpweya wozungulira sikuyenera kutsika kuposa -5 1C, osati kuposa +40 C, ndipo mtengo wapakati watsiku ndi tsiku usapitirire +35 C.

2. Kutalika: Kutalika kwa malo oyikapo sikuyenera kupitirira 2000m.

3.Atmospheric mikhalidwe

Mpweya ndi woyera, ndipo pa kutentha kwakukulu kwa +40 'C, chinyezi chachibale cha mlengalenga sichikwera Kuposa 50%. Chinyezi chokwera kwambiri chimaloledwa pa kutentha kochepa, monga + 20 C;

Chinyezi chachibale sichiyenera kupitirira 90%. Chifukwa cha kuzizira pang'ono komwe kumachitika chifukwa cha kusintha kwa kutentha, kuyenera kuperekedwa pochita zinthu zoyenera.

4. Kuyika Gulu Magawo oyika ndi lI ndi III

Panopa ndi Chiwerengero cha Mapole

100A: Izi zikuwonetsa kuti RCBO idavotera 100 amps. Zomwe zilipo panopa ndizofunika kwambiri pakalipano zomwe woyendetsa dera amatha kunyamula mosalekeza popanda kuchititsa kutentha kapena kuwonongeka.

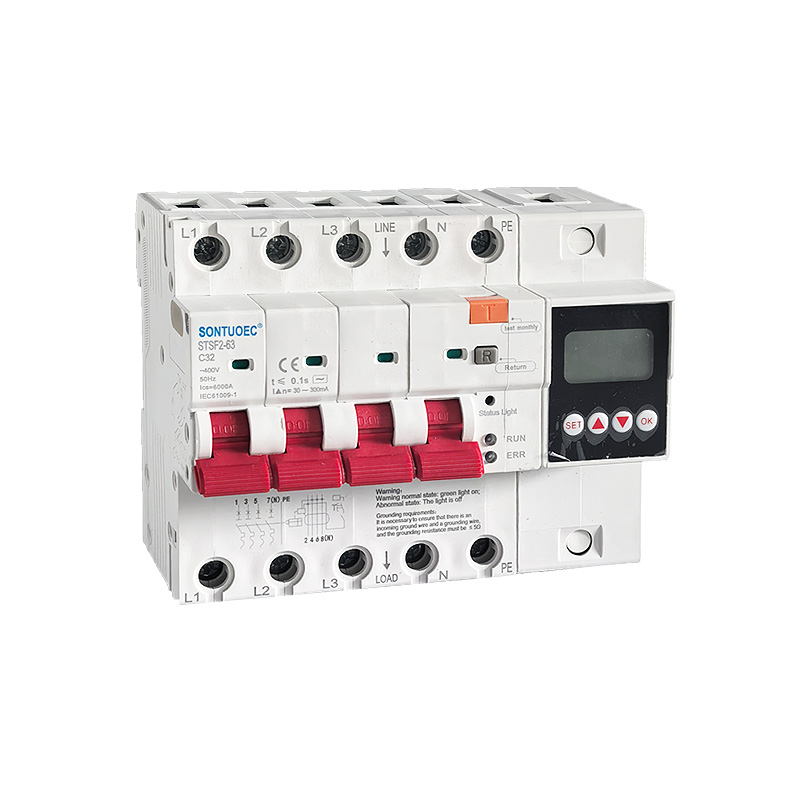

2p, 4p: "p" apa ikuyimira chiwerengero cha mizati, mwachitsanzo, chiwerengero cha magawo ozungulira omwe wodutsa dera angagwirizane nawo. 2p imatanthawuza kuti wodutsa dera akhoza kugwirizanitsidwa ndi magawo awiri ozungulira (kawirikawiri Moto ndi Zero), pamene 4p imatanthauza kuti ikhoza kugwirizanitsidwa ndi magawo anayi ozungulira (kawirikawiri magawo atatu a Moto ndi Zero).

Zochita zambiri

Multifunctional imasonyeza kuti 100A 2p 4p Multifunctional RCBO ili ndi ntchito zosiyanasiyana zotetezera. Kuphatikiza pakulemetsa koyambira komanso chitetezo chachifupi, imathanso kupereka chitetezo cha kutayikira, chitetezo chopanda mphamvu, chitetezo chambiri, ndi zina zotero. Kuteteza kutentha, Alamu ya ingress yamadzi, Kusintha kwapano ndi voteji.Zitetezozi zimalola RCBO kupereka chitetezo chokwanira pamabwalo ndi zida.

Chenjezo!

Chenjezo labwinobwino: kuwala kobiriwira kuyatsa;

Zachilendo: Nyali yazimitsa

Zofunikira pakukhazikitsa:

Ndikofunikira kuonetsetsa kuti pali waya wolowera pansi ndi waya wokhazikika, ndipo kukana kwapansi kuyenera kukhala s 5Q!

Ntchito Scenario

Popeza RCBO ili ndi ntchito zosiyanasiyana zoteteza, nthawi zambiri imagwiritsidwa ntchito m'mabwalo omwe amafunikira chitetezo chamunthu, monga mabwalo amagetsi owunikira, mphamvu zofooka, ndi zida zamagetsi m'nyumba ndi malo opezeka anthu ambiri. Malowa nthawi zambiri amakhala ndi madzi ndi chinyezi, zomwe zingayambitse ngozi zowonongeka mosavuta. Kuphatikiza apo, RCBO itha kugwiritsidwanso ntchito pamakina amagetsi amakampani pomwe chitetezo chamunthu chili chofunikira, monga mabwalo owongolera kuwala, makina a radar, ndi zida zowunikira ma geological.
