Stls-2 (CJX2) Phunziro lamakina kulowera

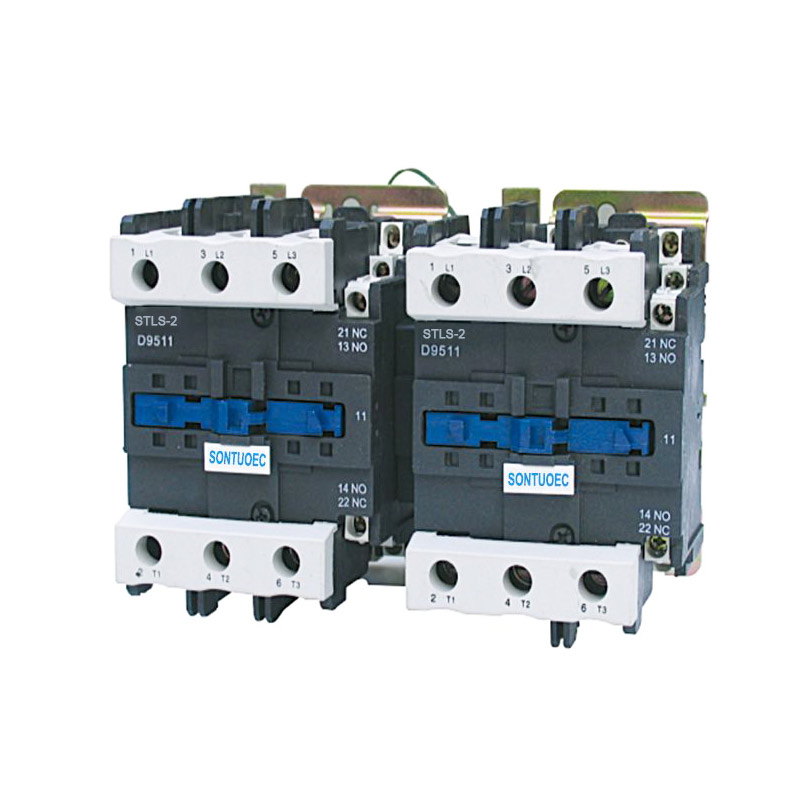

Stls-2 (CJX2) Pulati yachitetezo yamakina ndi yoyenera kugwiritsa ntchito mabwalo a magetsi mpaka magetsi ovotera 660v AC 50hz, chifukwa chosinthana mota. Chida chogwirizanitsa makina ichi chikuwonetsetsa kulumikizana ndi oyang'anira awiriwa. Zimagwirizana ndi IEC609474747465.

Chitsanzo:STLS-2(CJX2)

Tumizani Kufunsira

Mafotokozedwe Akatundu

Mtundu		Stls-2	Stls-2	Stls-2	Stls-2	Stls-2	Stls-2	Stls-2	Stls-2	Stls-2	Stls-2
		9	12	18	25	32	40	50	63	80	95
									60
Volidatio Vorusi		660	660	660	660	660	660	660	660	660	660
madzi wamba		20	24	32	40	50	60	75	80	110	125
zalero		20	24	32	40	50	60	75	80	110	125
Adavotera ntchito		9	12	16	25	32	40	50	63	80	95
zalero		9	12	16	25	32	40	50	63	80	95
oyendetsedwa	220V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
mphamvu (kw)	380V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	35	37	45	45
	440V	4	5.5	9	11	15	22	30	37	45	45
	660V	5.5	7.5	10	15	18.5	30	33	37	45	45
Zindikirani		Kukhazikitsa kwa					Kukhazikitsa kwa

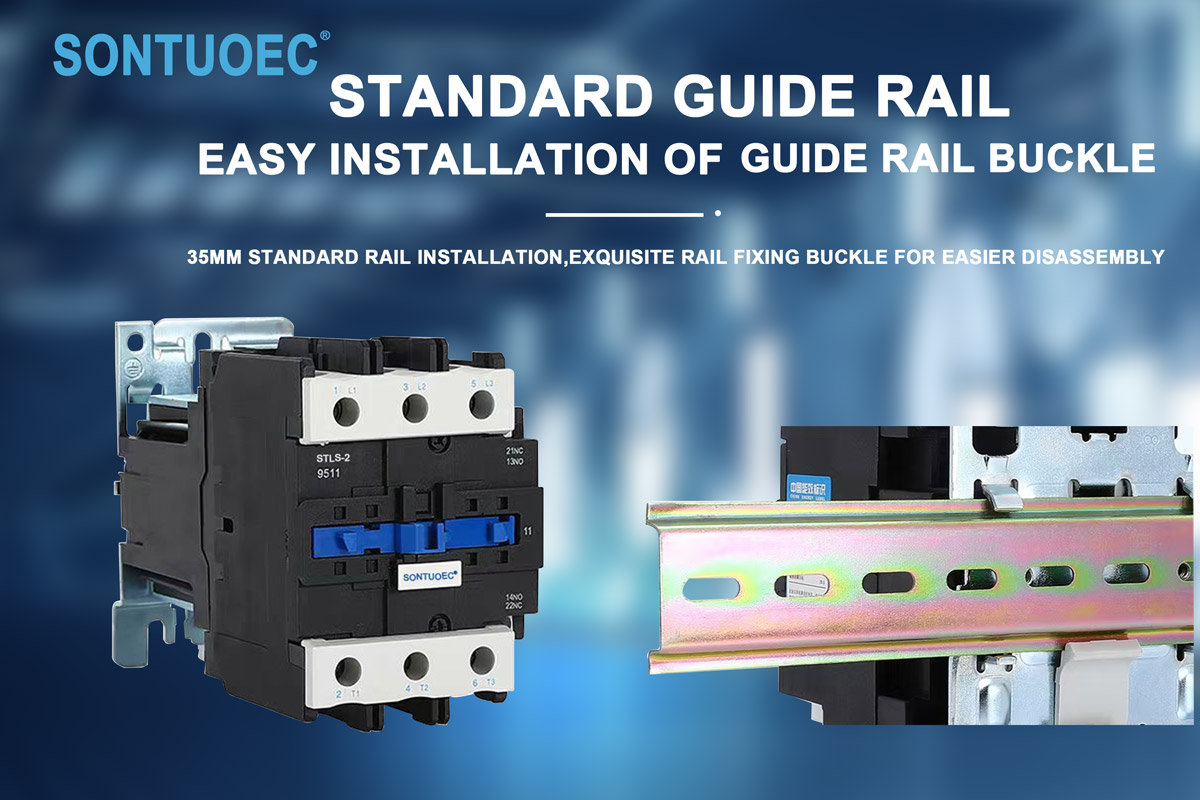

		Zolemba zitha kugwiritsa ntchito zomangira ziwiri					Chinsinsi chikhoza
		komanso gwiritsani ntchito 35mm					zomangira ndikugwiritsanso ntchito
		Kuyika njanji					75mm kapena 35mmm
							chitsulo

Kapangidwe ndi mawonekedwe

Kapangidwe:

Kugwiritsa ntchito Mac nthawi zambiri kumakhala ndi ma elekimagnetic (kuphatikiza core, ndi zina) Pakati pawo, kulumikizana kwakukulu kumagwiritsidwa ntchito kunyamula ndalama zamakono, ndipo zolumikizirana zothandizira zimagwiritsidwa ntchito kuzindikira kufalikira ndi mayankho owongolera.

Mawonekedwe:

Ndi kulumikizana kwachitatu, kumatha kuwongolera mphamvu zitatu za gawo limodzi ndi mzere umodzi wa zero nthawi yomweyo.

Dongosolo la kulumikizana limapangidwa ndi zinthu zapamwamba kwambiri ndi moyo wabwino komanso kuvala kukana.

Dongosolo lamagetsi lili ndi mankhwala okwanira kuchitira zinthu mokwanira ndikumasula zolumikizana.

Chida choluka cha Arc chimatha kuzimitsa bwino arc pomwe kulumikizana kumasoweketse, kuteteza kulumikizana ndi kuwonongeka.

Stls-2 (CJX2) Plaiction Movie Logloor yovomerezeka ndi yoyenera kugwiritsa ntchito magetsi mpaka 660v ac 50hz kapena 60hz, opanga - kuyambiranso, kumayambitsa ma ac. Kuphatikizidwa ndi cholumikizira cholumikizira, kuchedwetsa kwamasewera & chipangizo chogwiritsira ntchito makina etc, kumakhala kochedwetsa ku Areaor, makina oyimbira a Sport, Star-Delta. Ndi mphotho yolumikizira, imaphatikizidwa mu woyambira wamagetsi. Wokondedwa umapangidwa malinga ndi IEC 67947-1.

Mfundo yofunika kugwirira ntchito

Pamene coil ya Ac Lig Lictor imapatsa mphamvu, core core core imapanga maginito ndikukopa dongosolo la kulumikizana kuti litseke, motero kulumikizidwa ndi magetsi atatu ndi waya wa zero. Chipindacho chikapatsidwa mphamvu, pachimake chimataya mphamvu zake ndi makina olumikizirana ndi kasupe, motero amaletsa mphamvu zamagetsi zitatu kuchokera pa mzere wa zero. Mwanjira imeneyi, oyanjana ndi AC AC amatha kuzindikira kuwongolera kwa katundu wamagetsi.

Zolemba Zogwiritsira Ntchito

Makina a AC AC amagwiritsidwa ntchito kwambiri m'mayendedwe osiyanasiyana omwe amafunikira kuwongolera mphamvu zitatu ndi mzere umodzi nthawi yomweyo, monga:

Makina oyendetsa mafakitale: omwe amagwiritsidwa ntchito poyendetsa galimoto kuyamba, kuyimitsa ndi kusintha maopareshoni.

Mphamvu zamagetsi: Amakonda kuwongolera kuwongolera ndikutetezedwa kwa magetsi.

Kupanga Mwalamulo: Ankakonda kuwongolera kuyamba ndikuyima magetsi, zowongolera mpweya ndi zida zina.

Stls-2(Cjx2)Series Mechanical Interlocking Contactor
