2p rcbo mtundu

2p rcbo mtundu ndi wotsalira wambiri waposachedwa wambiri (wobwezeretsa waposachedwa waposachedwa), amatha kuwongolera pamoto (L1) ndi zero; Mtundu "nthawi zambiri umatanthauza mtundu wina kapena kutanthauzira kwa wophwanya dera, womwe ungaphatikizepo mawonekedwe, voliyumu yapano, yovotera ndi magawo ena a kuswa dera.

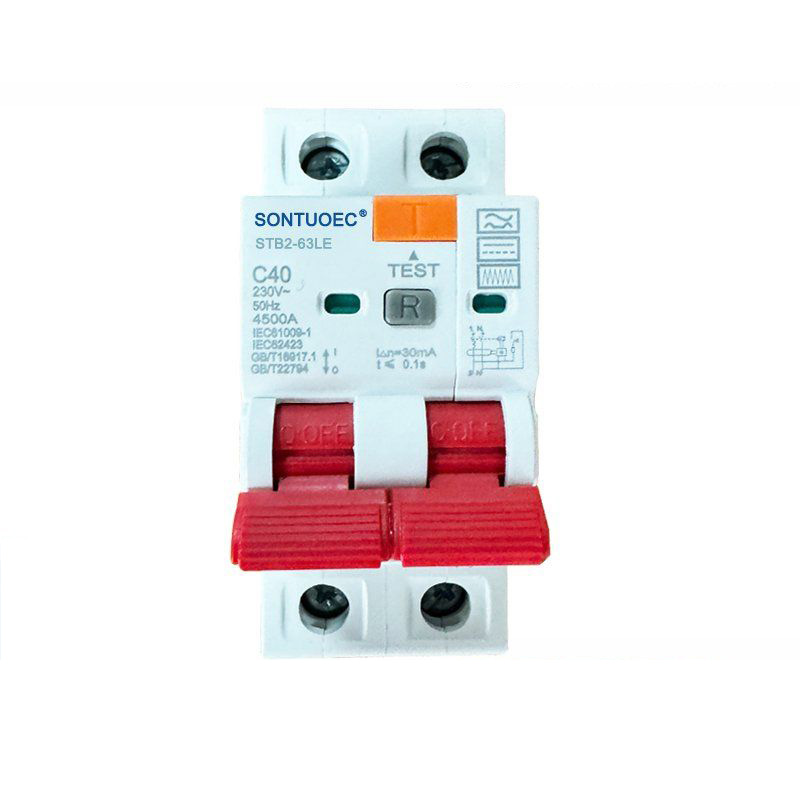

Chitsanzo:STB2-63LE

Tumizani Kufunsira

Mafotokozedwe Akatundu

	Wofanana	Lachigawo	IEC / EN 61009-1
Zamagetsi Mawonekedwe	Machitidwe		Mtundu wamagetsi
	Lembani (mawonekedwe adziko lapansi Kutayikira Kutayidwa)		Ndi, ndipo
	Kutulutsa kwamatsenga khalidwe		B, c, d
	Adavotera ln	A	6,10,16,10,25,32,40; 63,80a
	Mitengo	P	1p + n, 3p + n
	Adavotera magetsi	V	AC 230, 400
	Adavotera chidwi cha i △ n	A	0.01, 0.03, 0.1, 0,3, 0,5
	Kupanga kotsalira ndi kuswa mphamvu l △ m	A	500
	Idavotera icacity ya madera achidule	A	6000
	Nthawi yopuma pansi pa i △ n	S	≤0.1
	Kuvota Frequency	Hz	50/60
	Adavotera magetsi (1.2 / 50) uimp	V	4000
	Magetsi a sentilectic Ind.freq ya 1min	kV	2
	Madiotion Eirge UI	V	250
	Digiri yolosera		2
Zazitsulo Mawonekedwe	Moyo wamagetsi		4000
	Moyo Wopanga		10000
	Cholakwika chamakono		Inde
	Degree		Ip20
	Kutentha Kwambiri (ndi ma avarer955ºC)	ºC	-5 ~ + 40 (ntchito yapadera chonde onani Kuwongolera kutentha kwa kutentha
	Kutentha	ºC	-25 ~ + 70
Kuika	Mtundu wolumikizirana		Chingwe / pin-mtundu basi / u-mtundu basi
	Kukula Kwathunthu / Pansi pa chingwe	mm2	25
	Kukula Kwathunthu / Pansi pa chingwe	Ez	18-5
	Kukula Kwathunthu / Pansi pa basi	mm2	25
	Kukula Kwathunthu / Pansi pa basi	Ez	18 -3
	Kukweza		Pa Ster Rair 60715 (35mm) pogwiritsa ntchito cha chipangizo cha Clip chachangu
	Kulumikiza		Kuchokera pamwamba

Mawonekedwe akulu ndi magawo

Zochitika: 2p RCBO mtundu ali ndi ntchito yotsalira yaposachedwa, pomwe yotsalira yaposachedwa (i.e.)

Adalemba pano: Kutengera mtundu wake ndi mawonekedwe ake, mitundu yomwe ili ndi mtundu wa 2p ya 2p imatha kukhala yosiyanasiyana monga 6A, 10a, 15a, 50a, 50a, 80a, ndi zina zambiri.

Magetsi ovota: RCBO RCBO mtundu nthawi zambiri imavotera pa 240V mac a nyumba zapakhomo ndi zamagetsi.

Kuvotera pafupipafupi: pafupipafupi wophwanya derali nthawi zambiri umakhala 50 / 60hz, zomwe zikufanana ndi kuchuluka kwa magetsi m'maiko ndi madera ambiri.

Wovota Fardiot: The 2p RCBO Nyenyezi ili ndi gawo lalifupi kwambiri, monga 6ka kapena 10ka, zomwe zimatha kupirira ziwonetsero zazikuluzikulu popanda kuwonongeka pakadali pano.

Kuthana Nazo: Kutayikira kwa wophwanya derayu nthawi zambiri kumakhala 30ma kapena kuchepera, komwe kumakwaniritsa zofunikira za electrotechnical Commission (IEC) komanso kuwongolera chitetezo.

RCBO imagwiritsidwa ntchito makamaka mu AC 50hz (60hz), magetsi ovotera 230 / 400V, adavotera 6a mpaka 40A magetsi otsika pogawa. RCBO ndiyofanana ndi MCB + RCD ntchito; Amagwiritsidwa ntchito ngati chitetezo chamagetsi komanso chitetezo cha anthu osagwirizana ndi zida za anthu pomwe thupi la anthu limakhudza magetsi kapena kuwononga ndalama zomwe zimapangidwira kwambiri, komanso zotetezedwa kwakanthawi; Itha kukhala ogwiritsa ntchito mobwerezabwereza mudera, omwe amagwiritsidwa ntchito kwambiri m'chigawo cha malo ndi malonda. Imagwirizana ndi muyezo wa IEC61009-1.

Kugwiritsa Ntchito ndi Kukhazikitsa

Kugwiritsa: 2p RCBO mtundu ndi koyenera kuteteza madera ogawika komwe kumafunikira kuwongolera munthawi yomweyo moto ndi ma stker, madera ena ogulitsa mafakitale ndi malo ena.

Kukhazikitsa: Bungwe laumulo nthawi zambiri limakhala ndi symmetrical disk yonyamula njanji kapena pagulu, lomwe lingakhale labwino kuyika mwachangu ndikuchotsa nkhokwe yogawika kapena pogawa.

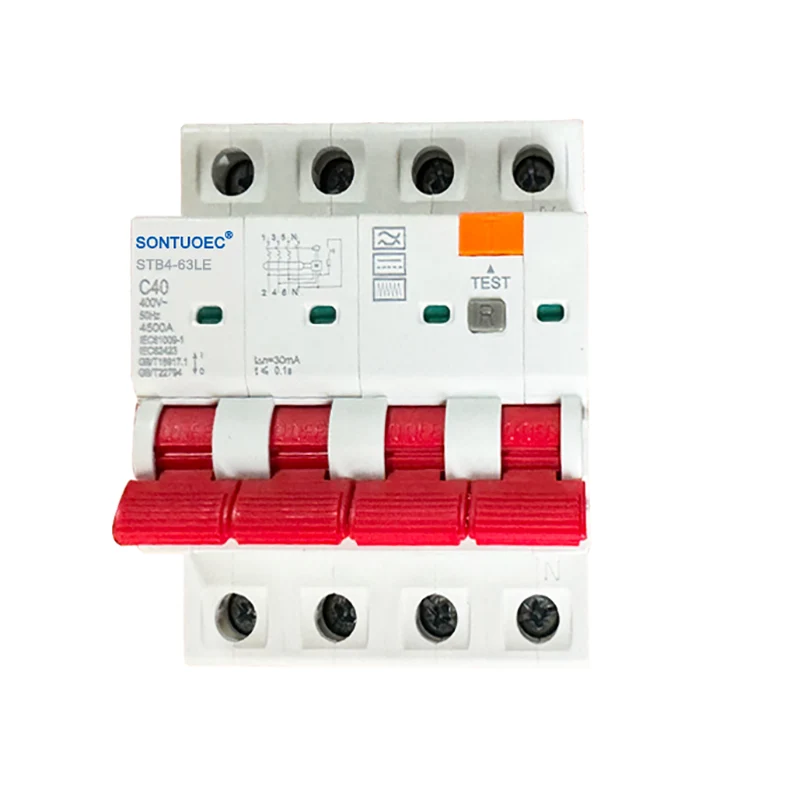

Woonda: 4p RCBO Imtundu wosinthika ndikusinthasintha ndipo amatha kulumikizidwa ndi waya atatu-waya, waya wachitatu kapena waya. Mukamaliza, onetsetsani kuti moto, ziro ndi zapadziko lapansi zimalumikizidwa bwino kuti zipewe ngozi yamagetsi yamagetsi komanso yamagetsi.

2P RCBO A Type
