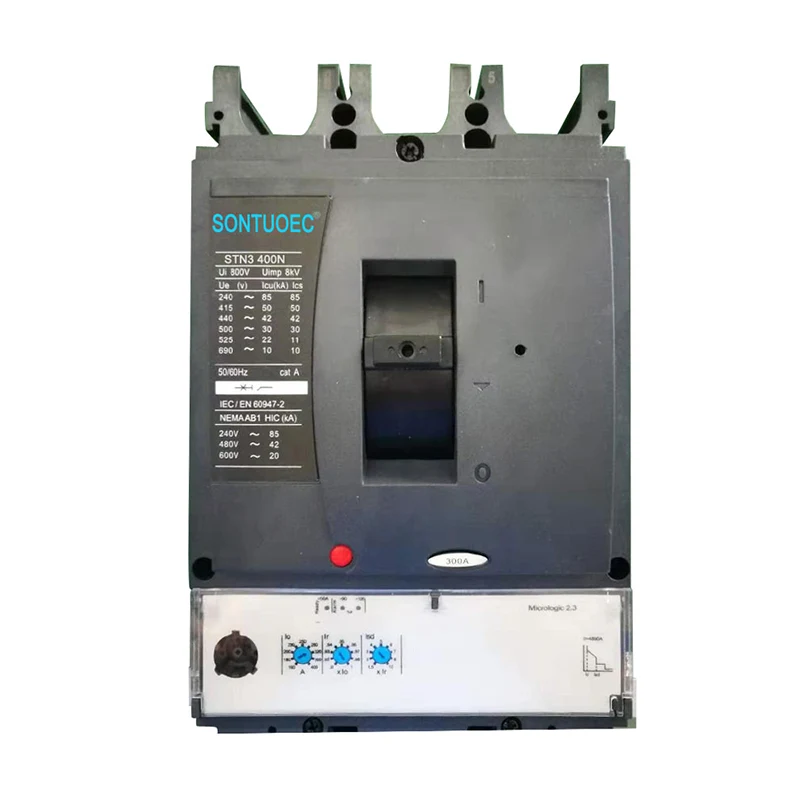

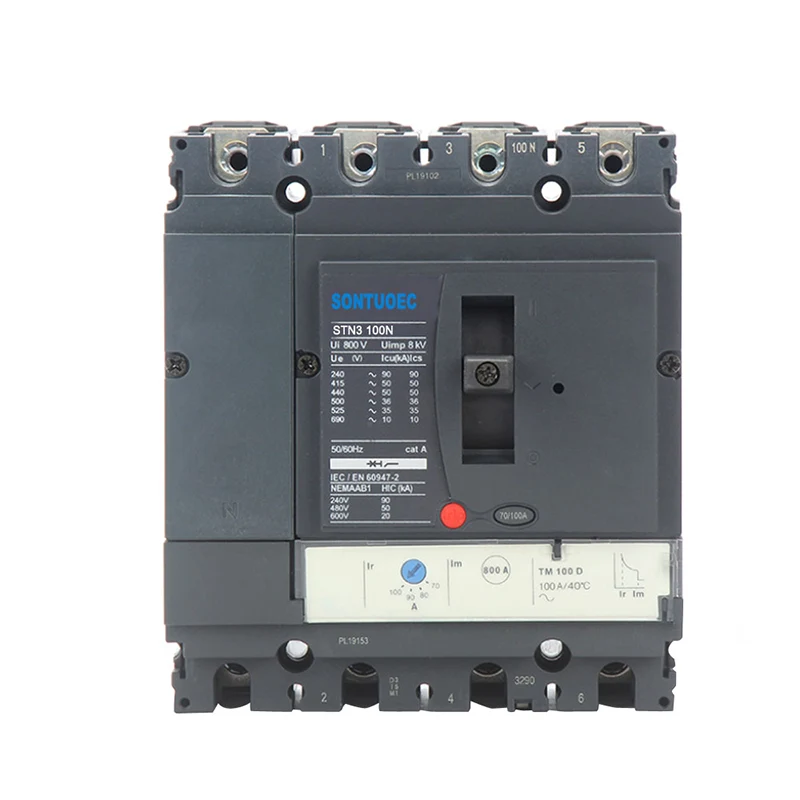

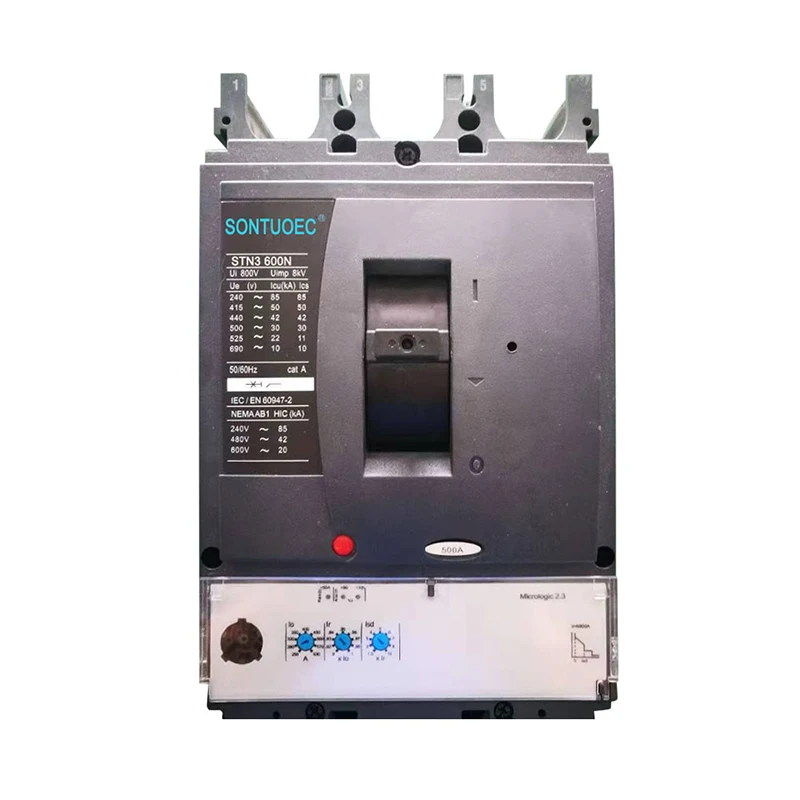

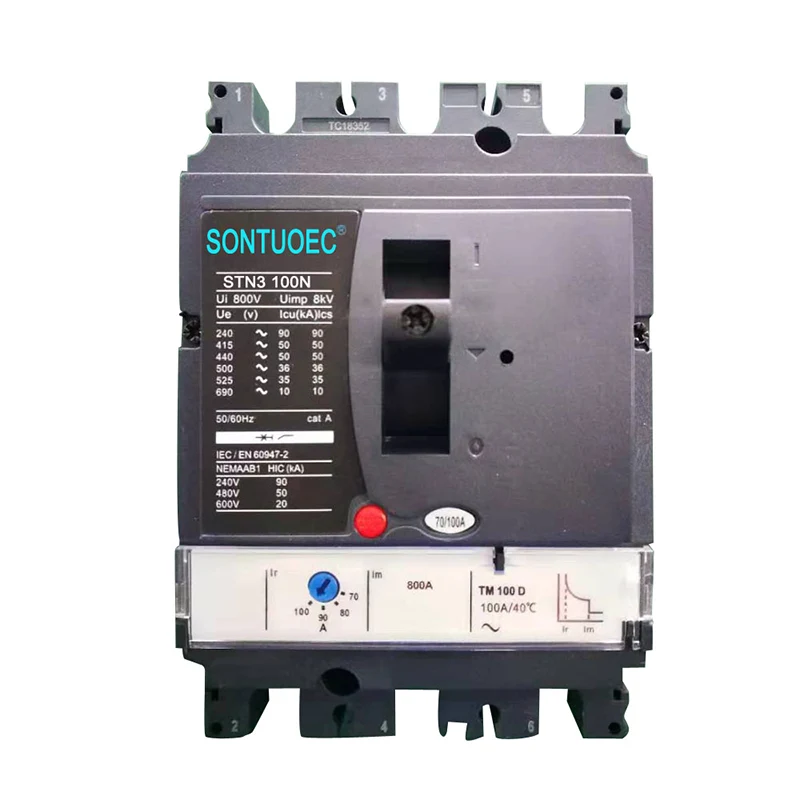

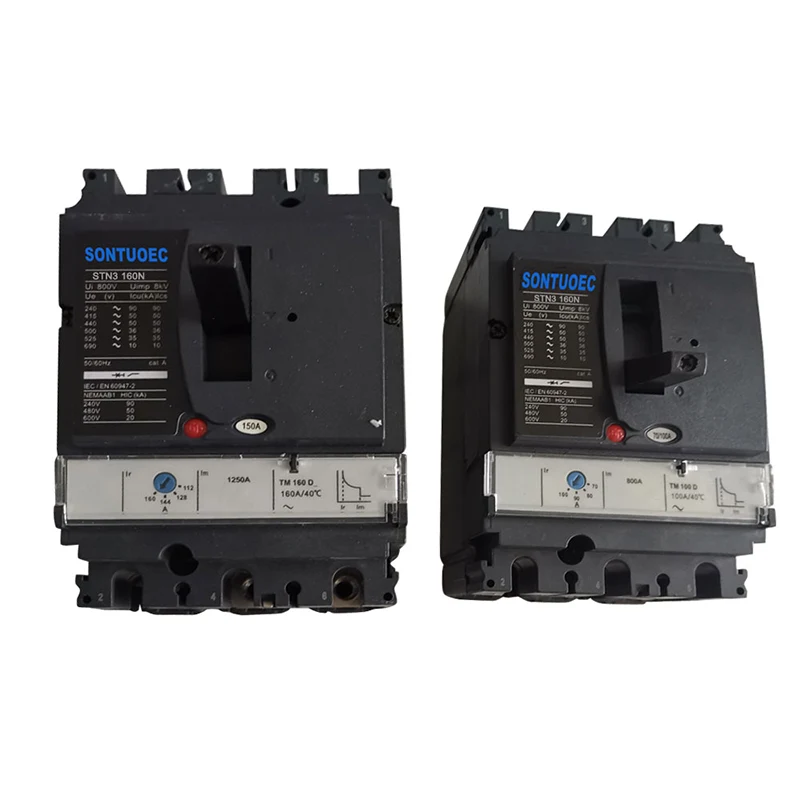

STn3 mtundu wopangidwa ndi Circle

Bungwe la STn3 mtundu wa Stn3 la Stn3 la Straity Strict ndi njira yodalirika komanso yotsogola yotetezedwa pamagetsi pamagetsi osiyanasiyana. Mapangidwe ake apachikulu, kuteteza kokwanira, komanso kuthekera koyankhulitsa kumapangitsa kuti zikhale chisankho chabwino pa machitidwe amagetsi amagetsi.

Chitsanzo:STN3

Tumizani Kufunsira

Mafotokozedwe Akatundu

Kulembana	STn3 100				STn3 160				STn3 250				STn3 400				STn3 630
Chimango chapano (a)	100				160				250				400				630
Kuchuluka kwa mitengo	3		4		3		4		3		4		3		4		3		4
Kuwononga Kwambiri Kutha (ICU, KA)	F	N		H	F	N		H	F	N		H	F	N		H	F	N		H
AC220 / 240V (kuchokera)	85	90		100	85	90		100	85	90		100	40	85		100	40	85		100
Ac3800 / 415V (ka)	36	50		70	36	50		70	36	50		70	36	50		70	36	50		70
Adavotera magetsi	Ac800v
Voliyumu yogwiritsira ntchito	AC690V
Adavotera, kutulutsa matenthedwe, TMD, a	63, 80, 100				80, 100, 125, 160				125, 160, 200, 250				-				-
Adavotera zamakono, zamagetsi, Mic, a	40, 100				40, 100, 160				100, 160, 250				250,				250, 400,
													400				630
Othandiza, Chenjezo, zolakwika	Kapena / sd / sde / sdx
Shunt & pansi pa colluge col	Mx / mn
Moyo Wopanga	50000				40000				20000				15000				15000
Moyo wamagetsi	30000				20000				10000				6000				4000

Model Ayi.	STn3
Muyezo:	IEC 60947-2
Kutulutsa kwa Arc-sing'anga	Mpweya
Sitilakichala	McCB
Mtundu	Mutu wa Mourlee Merker
Kupeleka chiphaso	CE
Kuvomerezedwa	CE, Iso9001
Nthawi yoperekera	Pakati pa 20days
Chifanizo	63A-630a
Chiyambi	Wenzhou Zanjiang
Kupanga Mphamvu	2000pieces / sabata
Kuthamanga	Mtundu wabwinobwino wozungulira
Kuika	Otera
Nambala ya Coles	3p 4p
Kugwira nchito	Brince of Berversical Chitetezo cholepheretsa, Kuteteza Kwambiri
Mtengo	Mtengo Wapamwamba
Nthawi ya Chitsimikizo	12zila
Phukusi la Zoyendetsa	Bokosi La mkati / Carton
Chizindikiro	Esoueec, Wzscec, Estutune, Imdec
Code ya HS	8536200000

Mawonekedwe Ofunika

• Kuteteza ndi magwiridwe antchito: Ophwanya awa amateteza kwathunthu machitidwe amagetsi, kuphatikizapo kutaya thupi komanso chitetezo chochepa. Adapangidwa kuti azingosinthanitsa madera ngati vuto likachitika, kupewa kuwonongeka kwa zida ndi kutsitsa.

• Shell yapano ndi yovotera pakalipano: chipolowe chaposachedwa (E.g., 160n) chikuwonetsa kuchuluka kwa mpweya wa ophwanya. Zovota zamakono (E.g.

• Kukhazikitsa kwa Pole: Kupezeka 3-poti (3p) ndi 4-poti (3p), yoyenera magetsi osiyanasiyana ndi mapulogalamu.

• Maofesi apaulendo apakompyuta: Mayunitsi apamwamba amagetsi amaperekanso mphamvu zolondola komanso zolankhulana, kulola kuwunika kwa nthawi yeniyeni ndi kuzindikira kwa magawo magetsi.

• Kapangidwe kabwino: Katundu wa NSX

Mapulogalamu

• Kugwiritsa ntchito mafakitale: Zogwiritsidwa ntchito kwambiri m'mafakitale ogawa ndikuteteza mphamvu zamagetsi ku zida ndi makina.

• Mphamvu ndi zomangamanga: zoyenera kugwiritsa ntchito zamagetsi zamagetsi zogawa magetsi ndi zomangamanga.

• Malo ogulitsa komanso okhala: amagwiritsanso ntchito m'nyumba zamalonda ndi nyumba zokhala malo m'malo ogulitsa ndi sekondale.

Zowonjezera za mndandanda wazithunzi za NSX

• Chitetezo chowonjezera: mawonekedwe monga kulumikizana kawiri ndi mphamvu yojambula bwino ku chitetezo chodalirika pa zolakwa.

• Kusankha mgwirizano: Kusankhana bwino kumathandizanso kupitilizabe kupezeka kwa magetsi pa zolakwa zomwe sizinalakwitse.

• kuthekera koyankhulana: Module ya modbus ndi BSCM (RSCM (RSCM) module) yothandizira kufalitsa deta

Kuwonetsa ndikuwunika: "Wokonzeka" wokonzeka kuperekera chidziwitso chenicheni, pomwe Fdm121 Concent Planle Ad Cadnint ikhoza kuwonetsa magawo osiyanasiyana.

• Kusamalira ndi kukonza: Zizindikiro zokhala ndi kukonzanso zimavala zolumikizana, zowongolera magwiridwe, ndi opareshoni, zimathandizira kukonzanso.

Kukhazikitsa ndi kukonza

• Kukhazikitsa: Tsatirani malangizo a wopanga kuti akhazikike, kuwonetsetsa kuti alema azoyenera ndikugwiritsa ntchito zida zovomerezeka.

• Kusamalira: Kuyendera pafupipafupi ndikuyezetsa ophwanya madera tikulimbikitsidwa kuti awonetsetse kuti agwire ntchito molondola ndikupereka chitetezo chopitilira.
